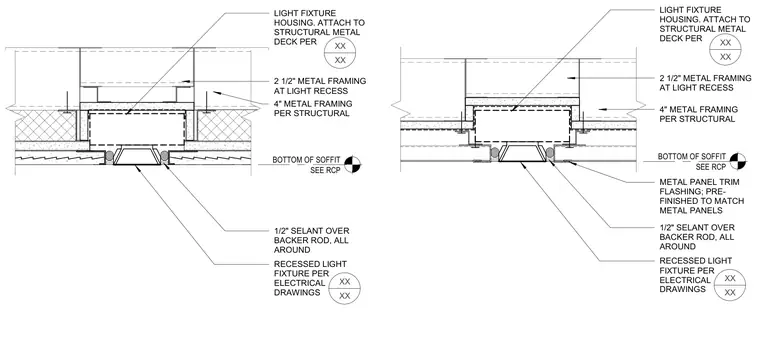

The recessed light fixture housing attaches directly to the structural metal deck above with supports. A four-inch metal framing system provides structural backing, supplemented by two-and-a-half-inch metal framing at the light recess itself. Pre-finished metal panel trim flashing frames the perimeter of the fixture. A half-inch sealant bead over a backer rod runs all around the perimeter for weather or moisture sealing.
LIGHT FIXTURE HOUSING. ATTACH TO STRUCTURAL METAL DECK PER 1/2" SELANT OVER BACKER ROD, ALL AROUND 4" METAL FRAMING PER STRUCTURAL METAL PANEL TRIM FLASHING; PRE- FINISHED TO MATCH METAL PANELS RECESSED LIGHT FIXTURE PER ELECTRICAL DRAWINGS SEE RCP BOTTOM OF SOFFIT XX XX XX XX 2 1/2" METAL FRAMING AT LIGHT RECESS LIGHT FIXTURE HOUSING. ATTACH TO STRUCTURAL METAL DECK PER 1/2" SELANT OVER BACKER ROD, ALL AROUND 4" METAL FRAMING PER STRUCTURAL RECESSED LIGHT FIXTURE PER ELECTRICAL DRAWINGS SEE RCP BOTTOM OF SOFFIT XX XX XX XX 2 1/2" METAL FRAMING AT LIGHT RECESS
