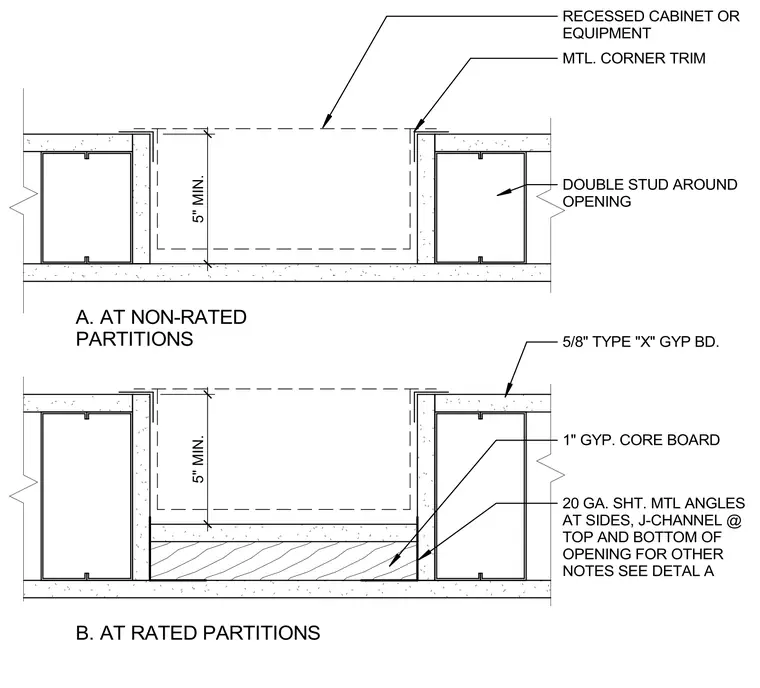

A recessed cabinet or equipment installs within non-rated and rated gypsum board partitions. Double studs frame around the opening. For non-rated partitions, metal corner trim finishes the gypsum board edges around the recess. For rated partitions, the assembly includes a 1-inch gypsum core board backed by twenty-gauge sheet metal angles at the sides and a J-channel at the top and bottom of the opening.
MTL. CORNER TRIM 5" MIN. 5" MIN. RECESSED CABINET OR EQUIPMENT DOUBLE STUD AROUND OPENING B. AT RATED PARTITIONS 5/8" TYPE "X" GYP BD. 1" GYP. CORE BOARD 20 GA. SHT. MTL ANGLES AT SIDES, J-CHANNEL @ TOP AND BOTTOM OF OPENING FOR OTHER NOTES SEE DETAL A A. AT NON-RATED PARTITIONS
