Architectural · A-CWJMS

Penthouse Curb and Roof Transition Detail

Materials

Concrete Steel Timber / Wood Metal (misc.)Gypsum / Drywall

Elements

Roofs Floors / Slabs Waterproofing / Flashing Insulation Site / Paving Roof / Floor Openings

About this detail

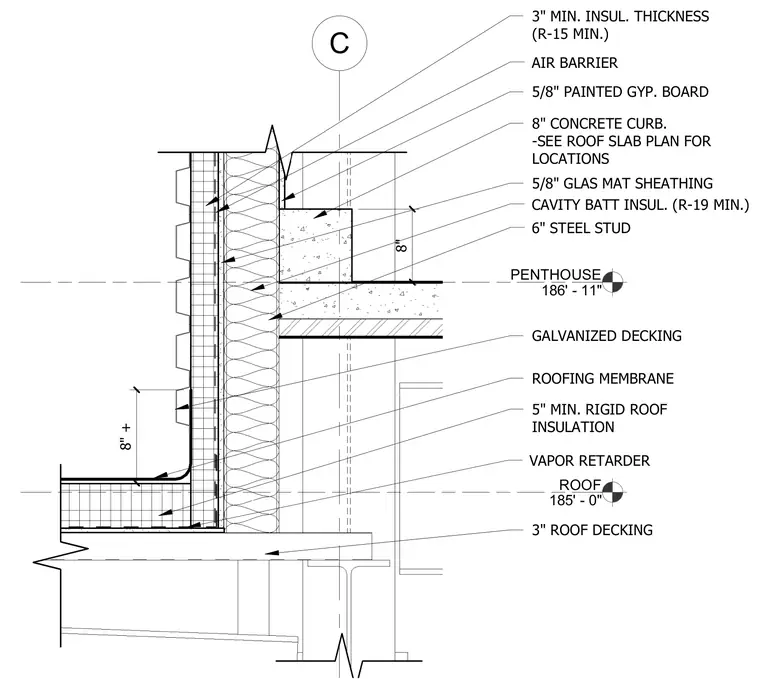

A roof transition detail features a concrete curb sitting on a steel deck supported by structural framing at the roof level 185'-0", rising to the penthouse level 186'-11". The assembly includes three inches of minimum insulation with an R-15 rating, five inches of minimum rigid roof insulation, a roofing membrane, and a vapor retarder over galvanized decking and three-inch roof decking. The exterior wall framing consists of six-inch steel studs with cavity batt insulation providing R-19 minimum thermal performance, five-eighths-inch glass mat exterior sheathing, an air barrier, and five-eighths-inch painted gypsum board on the interior side. An eight-inch concrete curb is positioned at the base of the penthouse wall, with locations sized per the roof slab plan.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
