The elevator ceiling assembly is provided by the elevator manufacturer with a perimeter backlit acrylic panel running along all sides. The ceiling meets the elevator cab wall finish at a specialized framing detail.

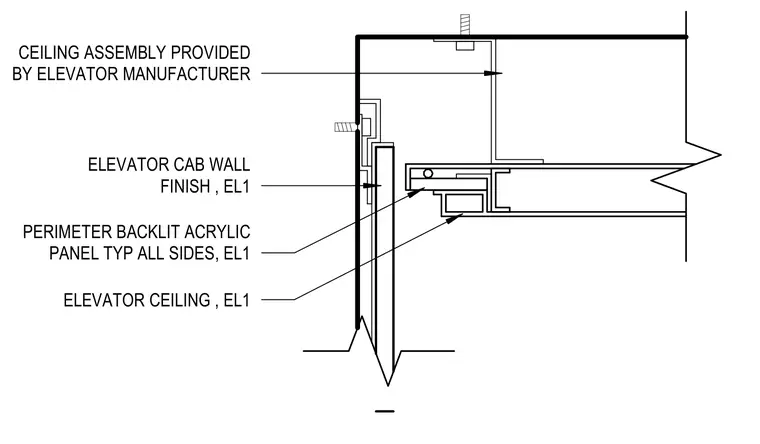

ELEVATOR CAB WALL FINISH , EL1 ELEVATOR CEILING , EL1 CEILING ASSEMBLY PROVIDED BY ELEVATOR MANUFACTURER PERIMETER BACKLIT ACRYLIC PANEL TYP ALL SIDES, EL1
