Architectural · A-CWHFD

Acoustical Ceiling Seismic Bracing and Compression Post Detail

Materials

Concrete

Elements

Columns Ceilings Floors / Slabs Bracing

Connections

Bracing Connection Bolted Connection

About this detail

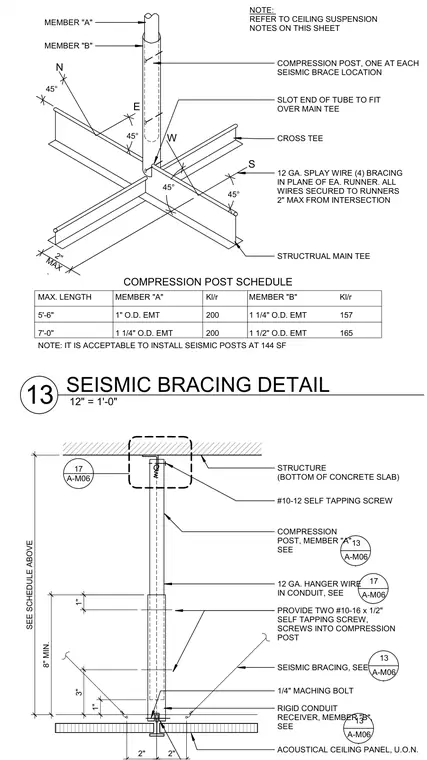

A compression post assembly extends from the bottom of a concrete slab structure to a suspended acoustical ceiling grid. The compression post consists of a telescoping tube arrangement utilizing electrical metallic tubing members secured together with self-tapping screws and a machine bolt. The slotted end of the tube fits directly over the structural main tee of the ceiling grid. Four twelve-gauge splay wires provide lateral bracing in the plane of each ceiling runner, secured within two inches of the tee intersection. A compression post schedule specifies member sizes and lengths for different ceiling heights.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
