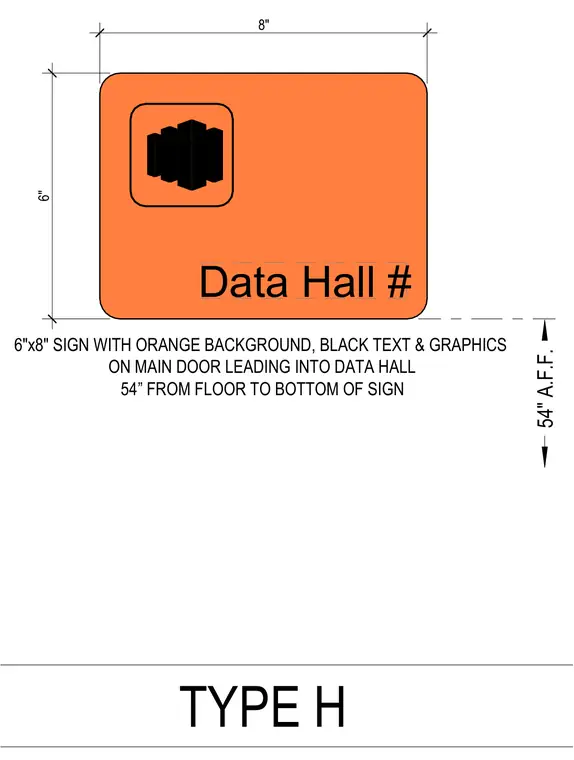

A six-inch by eight-inch sign features an orange background with black text and graphics reading Data Hall. The sign is mounted on the main door leading into the data hall at fifty-four inches above the finished floor to the bottom of the sign. The layout specifies dimensions of six inches in height and eight inches in width.
Data Hall # 6"x8" SIGN WITH ORANGE BACKGROUND, BLACK TEXT & GRAPHICS ON MAIN DOOR LEADING INTO DATA HALL 54” FROM FLOOR TO BOTTOM OF SIGN 6" 8" 54" A.F.F. TYPE H
