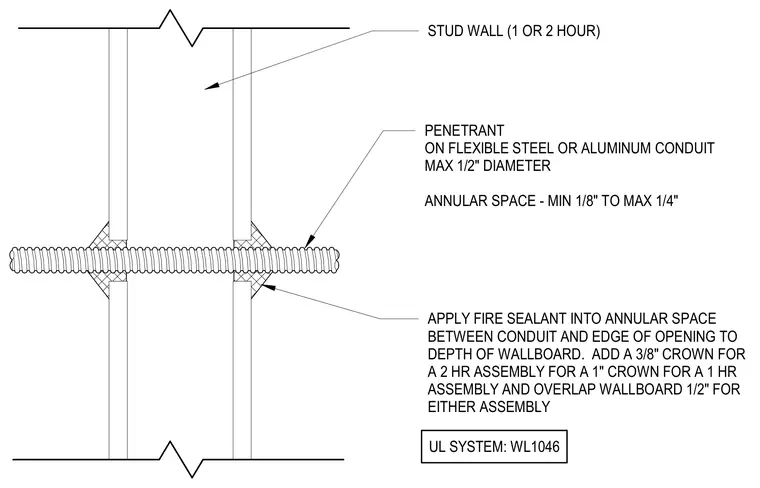

A flexible steel or aluminum conduit of maximum one-half inch diameter passes through a one or two-hour rated stud wall opening with an annular space maintained between one-eighth and one-quarter inch. Fire sealant is applied into the annular space to the depth of the wallboard. A crown is added at three-eighths inch for a two-hour assembly or one inch for a one-hour assembly, overlapping the wallboard by one-half inch in either configuration following Underwriters Laboratories system WL1046.
STUD WALL (1 OR 2 HOUR) PENETRANT ON FLEXIBLE STEEL OR ALUMINUM CONDUIT MAX 1/2" DIAMETER ANNULAR SPACE - MIN 1/8" TO MAX 1/4" APPLY FIRE SEALANT INTO ANNULAR SPACE BETWEEN CONDUIT AND EDGE OF OPENING TO DEPTH OF WALLBOARD. ADD A 3/8" CROWN FOR A 2 HR ASSEMBLY FOR A 1" CROWN FOR A 1 HR ASSEMBLY AND OVERLAP WALLBOARD 1/2" FOR EITHER ASSEMBLY UL SYSTEM: WL1046
