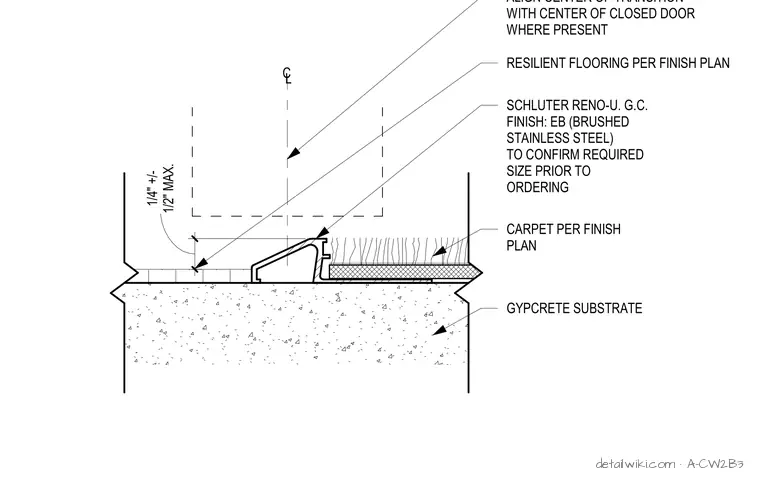

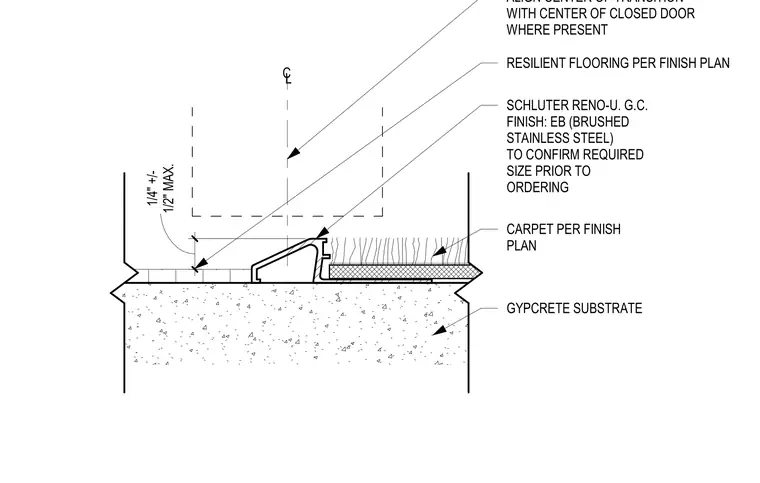

This transition assembly utilizes a Schluter Reno-U profile in a brushed stainless steel finish to manage the height differential between carpet and resilient flooring. The transition strip is centered beneath the closed door where applicable, with a maximum height variance of one-half inch. The profile is installed directly over the gypcrete substrate, with the resilient flooring and carpet specified per the finish plan. The installer must confirm the required profile size prior to ordering to ensure proper fit.
