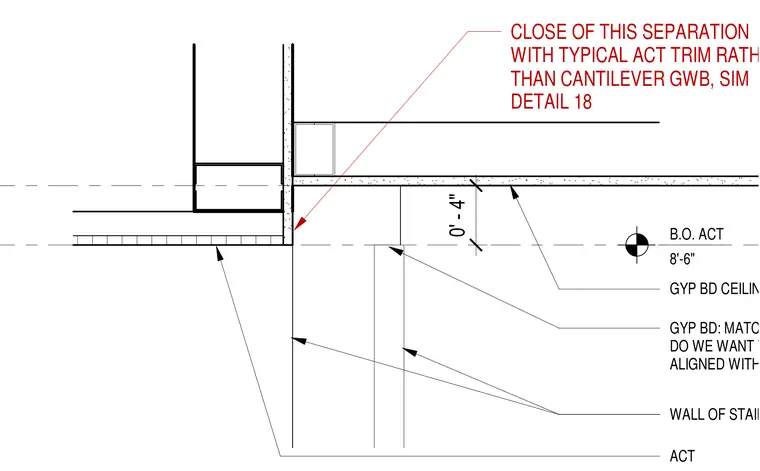

A gypsum board ceiling terminates at a laboratory entrance with the bottom of the acoustical ceiling tile set at eight feet six inches. A four-inch vertical separation between the gypsum board ceiling and the stair wall is closed with typical acoustical ceiling tile trim rather than a cantilevered gypsum wallboard soffit. The acoustic ceiling tile wall of the stair aligns with the adjacent wall assembly.
ACT WALL OF STAIR BEYOND GYP BD: MATCH UP WITH WALL BEYOND? DO WE WANT TO SEE BOTTOM OF SOFFIT ALIGNED WITH ACT? GYP BD CEILING AT LAB ENTRANCE B.O. ACT 8'-6" 0' - 4" CLOSE OF THIS SEPARATION WITH TYPICAL ACT TRIM RATHER THAN CANTILEVER GWB, SIM DETAIL 18
