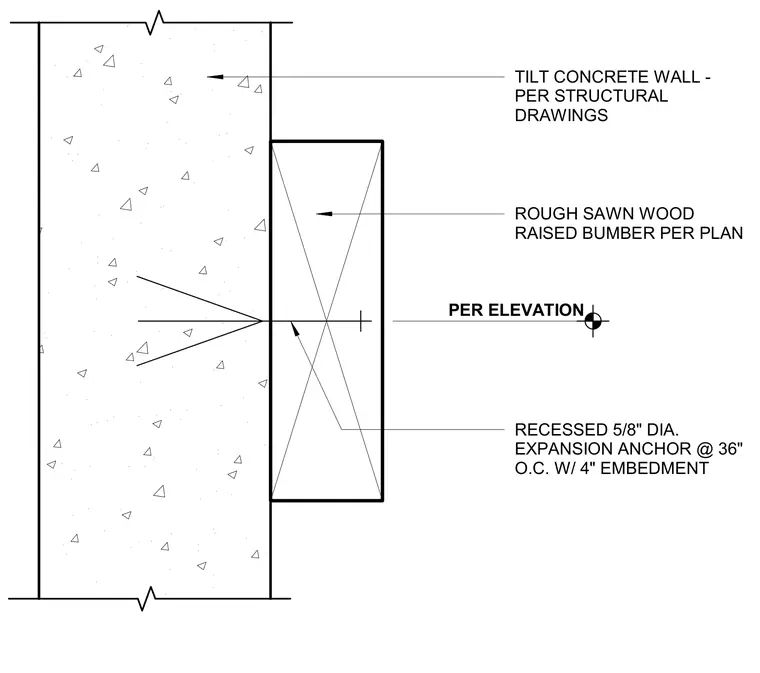

A rough sawn wood raised bumper rail is surface-mounted to a tilt-up concrete wall. The timber member is secured with five-eighths inch diameter recessed expansion anchors spaced at thirty-six inches on center with four inches of embedment.
TILT CONCRETE WALL - PER STRUCTURAL DRAWINGS ROUGH SAWN WOOD RAISED BUMBER PER PLAN PER ELEVATION RECESSED 5/8" DIA. EXPANSION ANCHOR @ 36" O.C. W/ 4" EMBEDMENT
