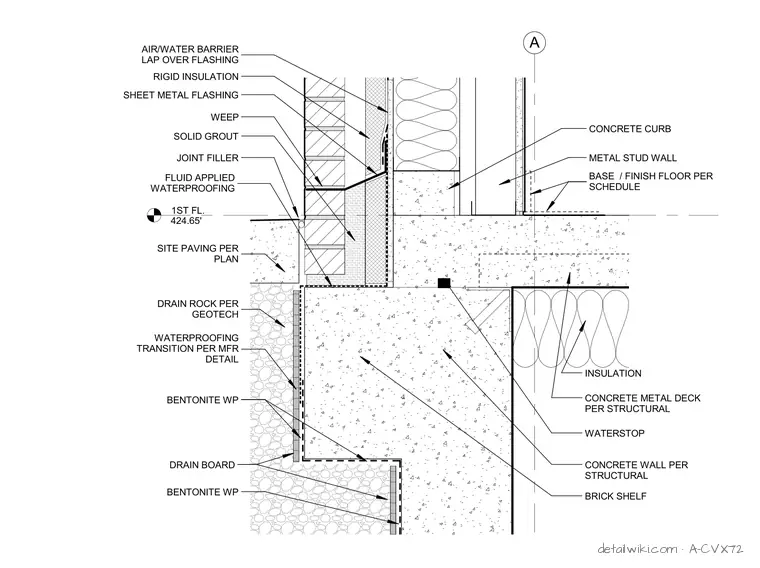

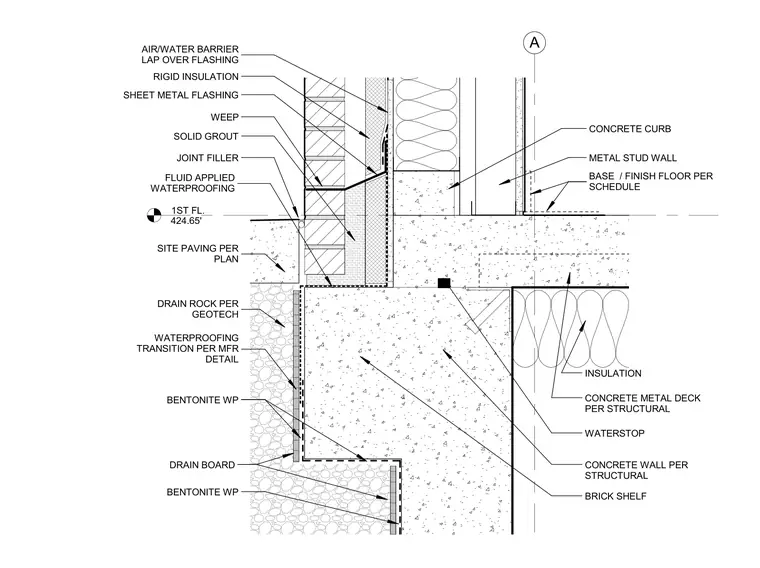

The assembly features a concrete wall supporting a brick shelf with exterior brick veneer, rigid insulation, and an air and water barrier lapped over sheet metal flashing. A fluid-applied waterproofing membrane coats the foundation exterior, transitioning to bentonite waterproofing and drain board against the subgrade, backed by drain rock per geotechnical specifications. A concrete curb and metal stud wall sit atop the concrete slab, which incorporates a waterstop and concrete metal deck per structural plans. Exterior site paving abuts the assembly at the base, incorporating a weep and joint filler above the brick shelf.
1ST FL. 424.65' A BENTONITE WP WATERSTOP BASE / FINISH FLOOR PER SCHEDULE SITE PAVING PER PLAN WATERPROOFING TRANSITION PER MFR DETAIL METAL STUD WALL CONCRETE WALL PER STRUCTURAL CONCRETE METAL DECK PER STRUCTURAL BRICK SHELF INSULATION AIR/WATER BARRIER LAP OVER FLASHING RIGID INSULATION SHEET METAL FLASHING SOLID GROUT FLUID APPLIED WATERPROOFING WEEP JOINT FILLER DRAIN BOARD CONCRETE CURB BENTONITE WP DRAIN ROCK PER GEOTECH
