A-CVRW7 — Ribbon Window - Unfinished

Architectural · A-CVRW7

Ribbon Window - Unfinished

Units: imperial
Sheet: A366
Discipline: Architectural

Materials

Metal (misc.)Steel

Elements

Beams Facades / Cladding Insulation Storefronts Walls Waterproofing / Flashing Windows

Text on the drawing

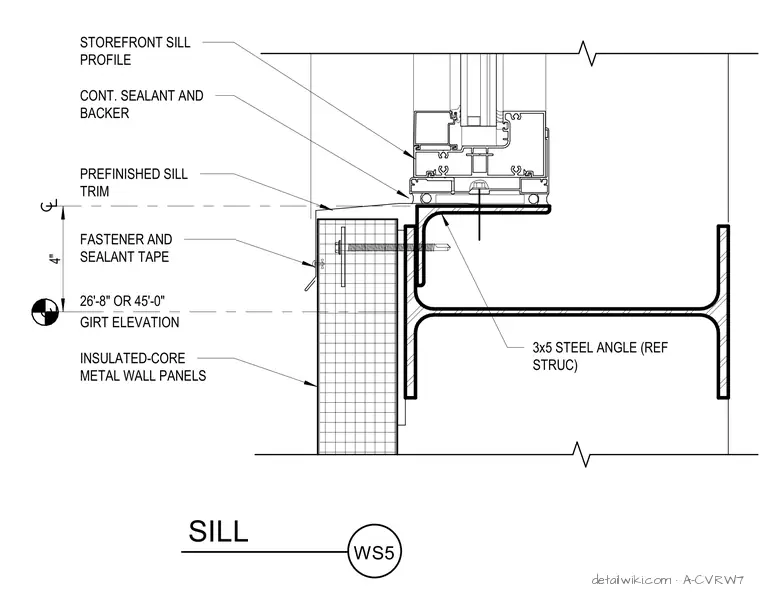

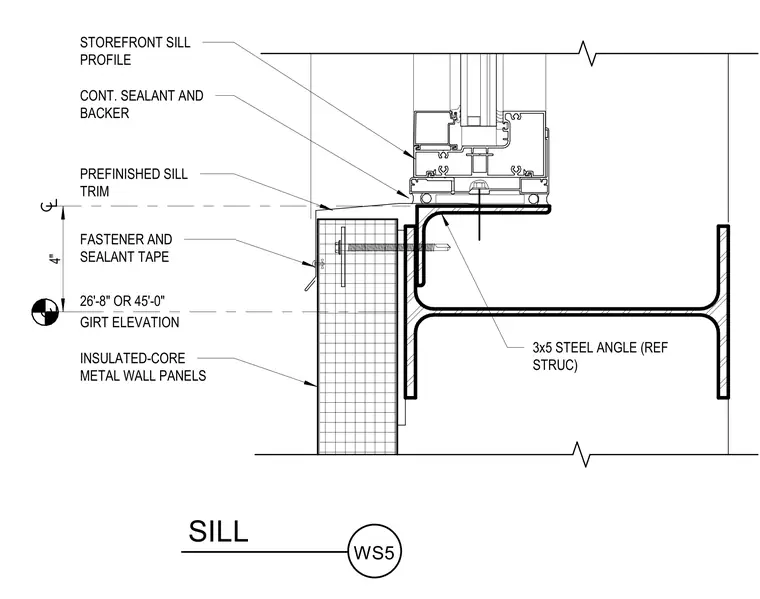

PREFINISHED SILL TRIM INSULATED-CORE METAL WALL PANELS 3x5 STEEL ANGLE (REF STRUC) FASTENER AND SEALANT TAPE STOREFRONT SILL PROFILE CONT. SEALANT AND BACKER SILL WS5 4" 26'-8" OR 45'-0" GIRT ELEVATION
