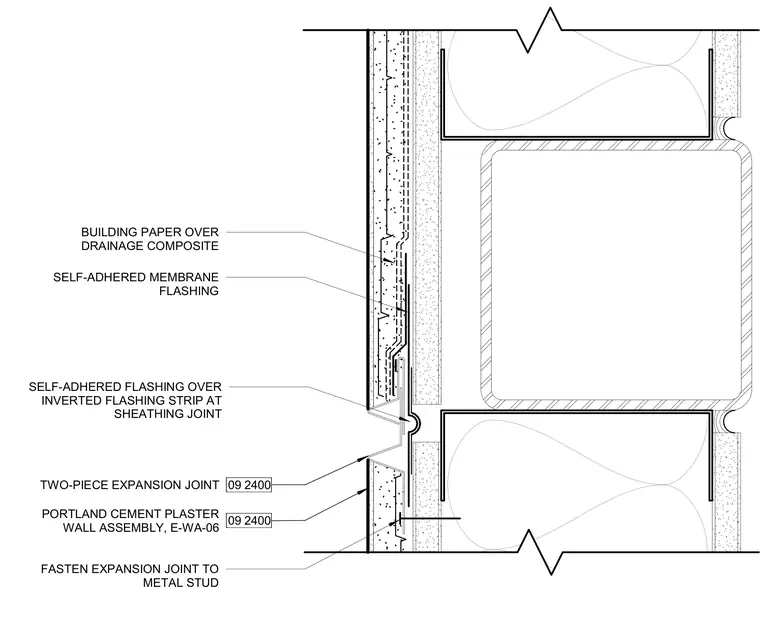

A two-piece expansion joint is fastened to cold-formed metal framing within a Portland cement plaster wall assembly. The exterior water-resistive barrier consists of building paper installed over a drainage composite and self-adhered membrane flashing. Additional self-adhered flashing covers an inverted flashing strip located at the sheathing joint.
FASTEN EXPANSION JOINT TO METAL STUD 09 2400 TWO-PIECE EXPANSION JOINT 09 2400 PORTLAND CEMENT PLASTER WALL ASSEMBLY, E-WA-06 BUILDING PAPER OVER DRAINAGE COMPOSITE SELF-ADHERED MEMBRANE FLASHING SELF-ADHERED FLASHING OVER INVERTED FLASHING STRIP AT SHEATHING JOINT
