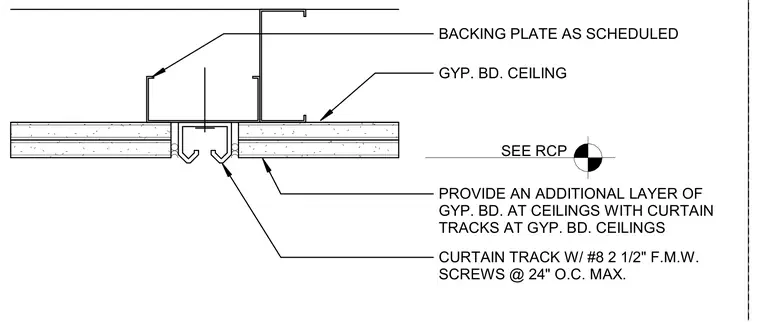

A recessed curtain track is secured to an overhead backing plate using number 8 by 2-and-1-half-inch flat machine wood screws spaced at 24 inches on center maximum. The ceiling consists of gypsum board with an additional layer provided specifically at ceilings featuring curtain tracks. A backing plate as scheduled supports the track framing within the ceiling plenum. Layout and positioning are coordinated with the reflected ceiling plan.
CURTAIN TRACK W/ #8 2 1/2" F.M.W. SCREWS @ 24" O.C. MAX. BACKING PLATE AS SCHEDULED GYP. BD. CEILING PROVIDE AN ADDITIONAL LAYER OF GYP. BD. AT CEILINGS WITH CURTAIN TRACKS AT GYP. BD. CEILINGS SEE RCP
