Architectural · A-CVNV4

Curtain Wall Junction at Floor Slab and Fire-Rated Wall

Materials

Glass / Glazing Aluminum Gypsum / Drywall

Elements

Walls Curtain Walls Ceilings Floors / Slabs Expansion / Control Joints Insulation

About this detail

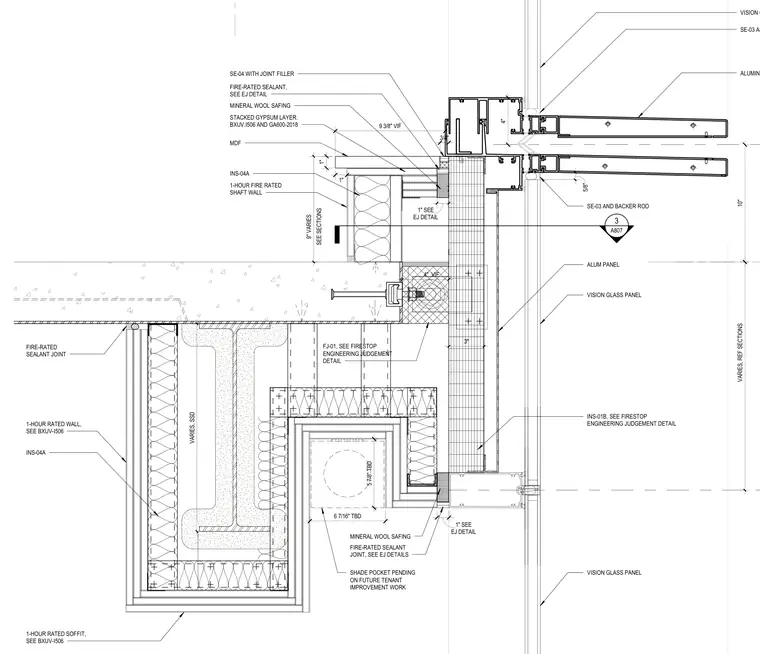

A multi-story curtain wall transitions at a floor slab edge and a fire-rated shaft wall. The assembly features vision glass panels and aluminum framing members tied back to structural steel elements. Mineral wool safing insulation and fire-rated sealant joints are detailed at the slab intersection for firestopping per UL assemblies BXUV-I506 and GA600-2018. Gypsum board layers form a one-hour rated shaft wall and soffit assembly beneath the slab edge. Additional components include a shade pocket pending future tenant improvement work and specialized expansion joint details.
