A twenty-four gauge Kynar-coated metal coping extends up and under the horizontal coping at the top of the wall, secured by number fourteen by one and one-half inch fasteners with watertight washers spaced at twelve inches on center. A single-ply membrane wraps the end of the concrete wall panel. A continuous cleat is fastened to the panel at eight inches on center, engaging the horizontal coping which folds up the wall three inches behind the vertical coping. Continuous sealant is applied at the joint, and silicone sealant seals the vertical to horizontal coping intersection.

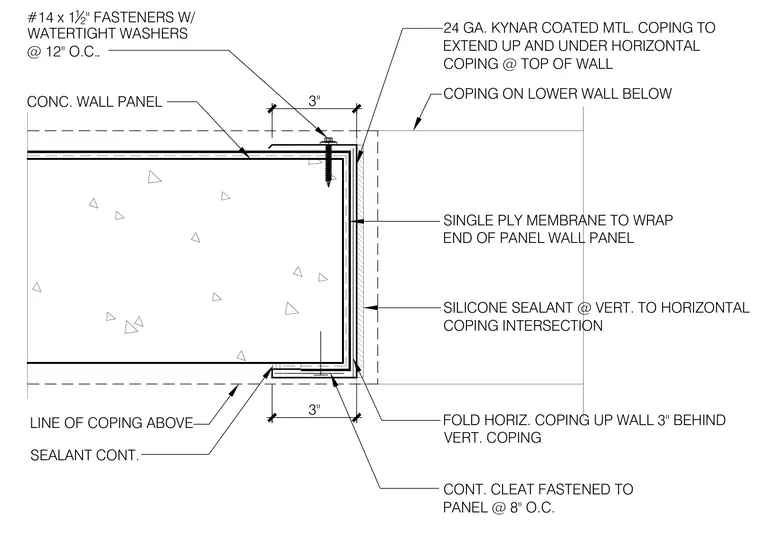

24 GA. KYNAR COATED MTL. COPING TO EXTEND UP AND UNDER HORIZONTAL COPING @ TOP OF WALL #14 x 1 12 " FASTENERS W/ WATERTIGHT WASHERS @ 12" O.C. SINGLE PLY MEMBRANE TO WRAP END OF PANEL WALL PANEL 3" 3" CONT. CLEAT FASTENED TO PANEL @ 8" O.C. CONC. WALL PANEL LINE OF COPING ABOVE COPING ON LOWER WALL BELOW SEALANT CONT. FOLD HORIZ. COPING UP WALL 3" BEHIND VERT. COPING SILICONE SEALANT @ VERT. TO HORIZONTAL COPING INTERSECTION
