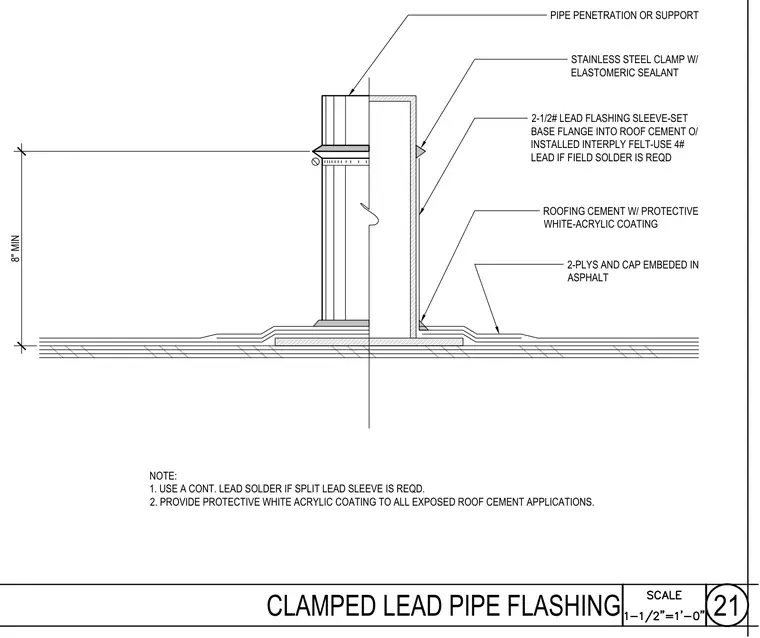

A pipe penetration or support extends upward through a built-up roof assembly featuring two plies and a cap embedded in asphalt. A two-and-a-half-pound lead flashing sleeve is set with its base flange into roof cement over installed interply felt, requiring four-pound lead if field soldering is used. A stainless steel clamp with elastomeric sealant secures the sleeve to the pipe penetration. Roofing cement with a protective white-acrylic coating finishes the base flange. A continuous lead solder is used if a split lead sleeve is required, and all exposed roof cement applications receive a protective white acrylic coating with an eight-inch minimum height.
PIPE PENETRATION OR SUPPORT STAINLESS STEEL CLAMP W/ ELASTOMERIC SEALANT 2-1/2# LEAD FLASHING SLEEVE-SET BASE FLANGE INTO ROOF CEMENT O/ INSTALLED INTERPLY FELT-USE 4# LEAD IF FIELD SOLDER IS REQD ROOFING CEMENT W/ PROTECTIVE WHITE-ACRYLIC COATING 2-PLYS AND CAP EMBEDED IN ASPHALT NOTE: 1. USE A CONT. LEAD SOLDER IF SPLIT LEAD SLEEVE IS REQD. 2. PROVIDE PROTECTIVE WHITE ACRYLIC COATING TO ALL EXPOSED ROOF CEMENT APPLICATIONS. 8" MIN 21 CLAMPED LEAD PIPE FLASHING
