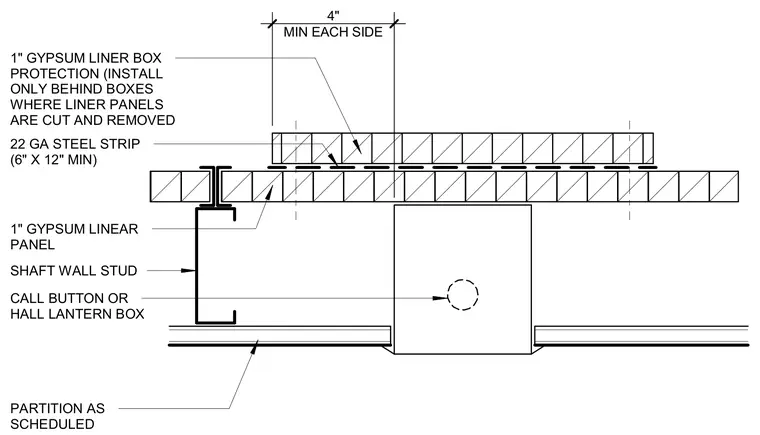

An elevator call button or hall lantern box penetrates a shaft wall assembly consisting of shaft wall studs, 1-inch gypsum linear panels, and a partition as scheduled. A 22-gauge steel strip measuring 6 inches by 12 inches minimum is positioned behind the box. Additionally, 1-inch gypsum liner box protection is installed exclusively behind the electrical boxes where the main liner panels are cut and removed, extending a minimum of 4 inches on each side.
MIN EACH SIDE 4" PARTITION AS SCHEDULED CALL BUTTON OR HALL LANTERN BOX 1" GYPSUM LINEAR PANEL 22 GA STEEL STRIP (6" X 12" MIN) 1" GYPSUM LINER BOX PROTECTION (INSTALL ONLY BEHIND BOXES WHERE LINER PANELS ARE CUT AND REMOVED SHAFT WALL STUD
