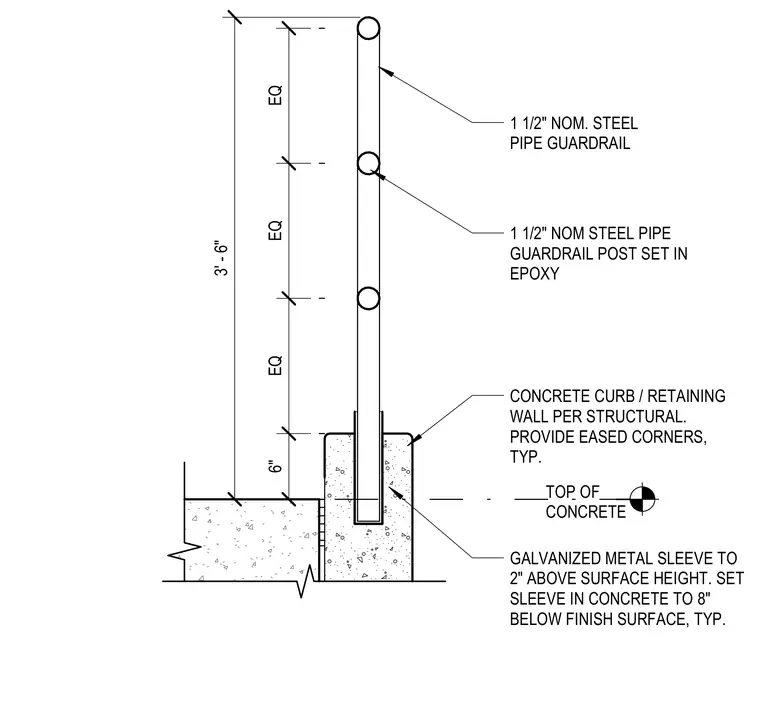

A one and one-half inch nominal steel pipe guardrail stands three feet and six inches high above the finished concrete surface. The guardrail post is set into a galvanized metal sleeve that extends two inches above the surface height and eight inches below the finish surface into the concrete. The sleeve is secured with epoxy. A concrete curb and retaining wall specified per structural requirements features eased corners.
TOP OF CONCRETE 6" EQ EQ EQ 1 1/2" NOM. STEEL PIPE GUARDRAIL 1 1/2" NOM STEEL PIPE GUARDRAIL POST SET IN EPOXY GALVANIZED METAL SLEEVE TO 2" ABOVE SURFACE HEIGHT. SET SLEEVE IN CONCRETE TO 8" BELOW FINISH SURFACE, TYP. CONCRETE CURB / RETAINING WALL PER STRUCTURAL. PROVIDE EASED CORNERS, TYP. 3' - 6"
