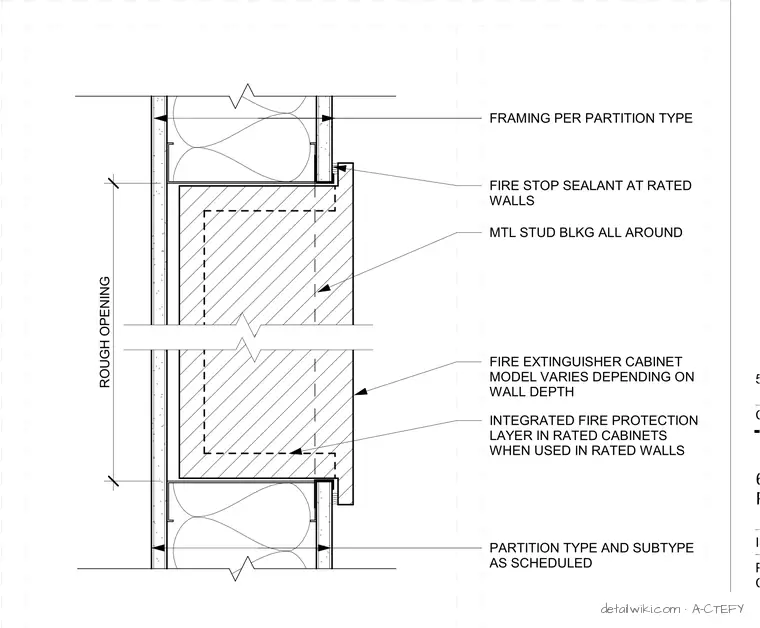

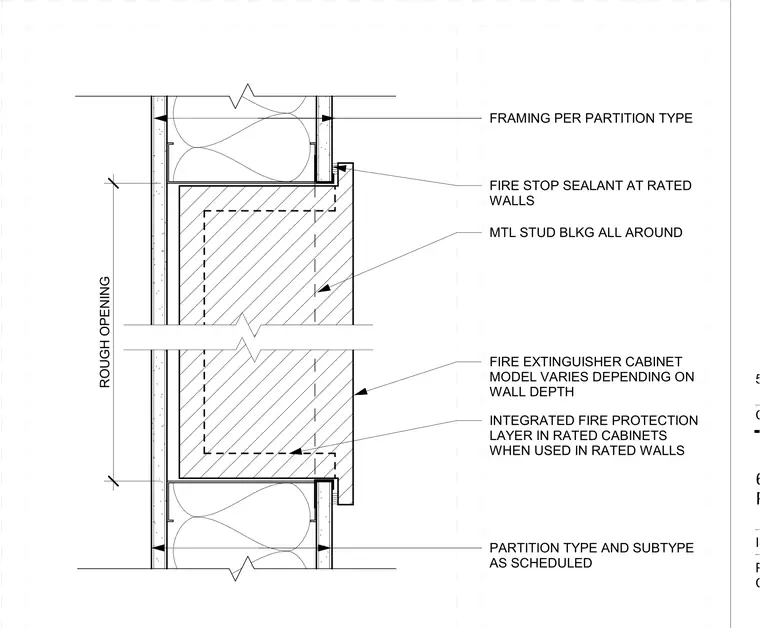

A fire extinguisher cabinet is recessed into a framed metal stud partition with backing and framing sized per the partition type and subtype schedule. Metal stud blocking runs all around the rough opening to support the unit securely within the wall cavity. Fire stop sealant is applied at rated walls around the perimeter of the cabinet flange. An integrated fire protection layer is included in rated cabinets when installed within fire-rated walls.
FIRE STOP SEALANT AT RATED WALLS FIRE EXTINGUISHER CABINET MODEL VARIES DEPENDING ON WALL DEPTH MTL STUD BLKG ALL AROUND ROUGH OPENING PARTITION TYPE AND SUBTYPE AS SCHEDULED INTEGRATED FIRE PROTECTION LAYER IN RATED CABINETS WHEN USED IN RATED WALLS FRAMING PER PARTITION TYPE CLIENT: ISSUANCE PERMIT SET CD PERMIT SET 629 EMERSON ST PALO ALTO, CA 94301 540 UNIVERSITY AVENUE, PALO ALTO, CA 94301 THOITS BROS., INC
