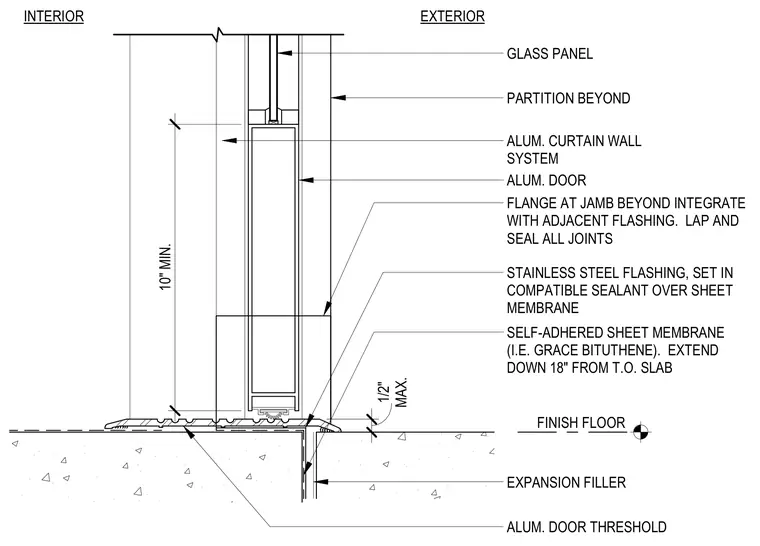

An aluminum door threshold bears upon the finish floor slab adjacent to an expansion filler and a self-adhered sheet membrane extending down eighteen inches from the top of the slab. Stainless steel flashing is set in compatible sealant over the sheet membrane. An aluminum curtain wall system and aluminum door frame tie into the assembly, with the door flange at the jamb integrated into adjacent flashing with lapped and sealed joints.
ALUM. CURTAIN WALL SYSTEM ALUM. DOOR FLANGE AT JAMB BEYOND INTEGRATE WITH ADJACENT FLASHING. LAP AND SEAL ALL JOINTS FINISH FLOOR GLASS PANEL INTERIOR EXTERIOR PARTITION BEYOND 10" MIN. MAX. 1/2" STAINLESS STEEL FLASHING, SET IN COMPATIBLE SEALANT OVER SHEET MEMBRANE SELF-ADHERED SHEET MEMBRANE (I.E. GRACE BITUTHENE). EXTEND DOWN 18" FROM T.O. SLAB EXPANSION FILLER ALUM. DOOR THRESHOLD
