Architectural · A-CT286

Curtain Wall Head at Integrated Light Box

Materials

Elements

Walls Windows Curtain Walls Facades / Cladding

About this detail

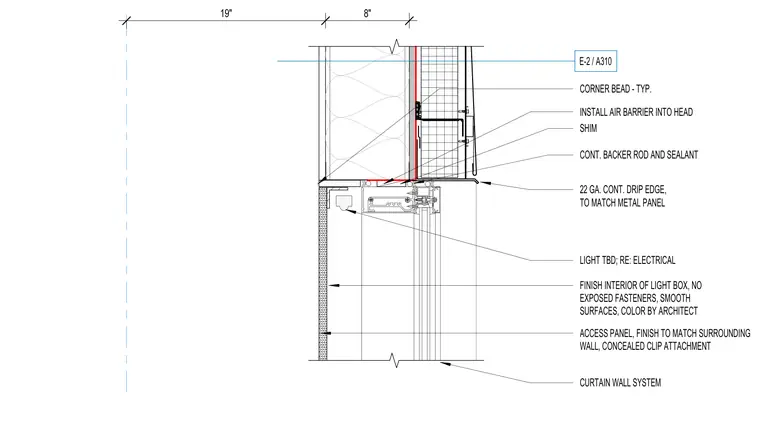

A curtain wall head connection interfaces with an integrated interior light box and exterior metal panel assembly. A continuous twenty-two gauge drip edge ties into the curtain wall system alongside shims, continuous backer rod, and sealant. An air barrier extends into the head condition, protected by a typical corner bead. The interior features a light box with a concealed clip attachment and a smooth, unexposed fastener finish on the access panel.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
