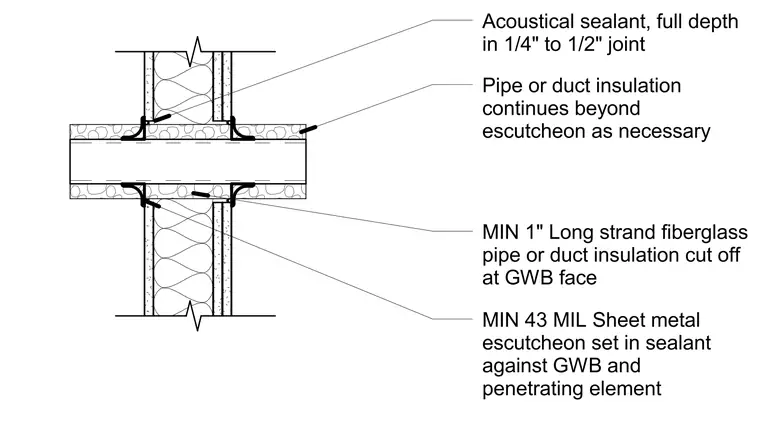

A pipe or duct penetrates a gypsum wall assembly, sealed to maintain acoustical performance. A minimum 43 mil sheet metal escutcheon is set in acoustical sealant against the gypsum wallboard and the penetrating element. Acoustical sealant fills the joint full depth at one-quarter inch to one-half inch width. Long-strand fiberglass pipe or duct insulation with a minimum one-inch thickness is cut off at the gypsum wallboard face, continuing beyond the escutcheon as necessary.
Acoustical sealant, full depth in 1/4" to 1/2" joint MIN 43 MIL Sheet metal escutcheon set in sealant against GWB and penetrating element Pipe or duct insulation continues beyond escutcheon as necessary MIN 1" Long strand fiberglass pipe or duct insulation cut off at GWB face
