Two layers of gypsum board are installed on each side of the framing. The assembly uses metal studs measuring two and a half inches minimum depth at twenty-four inches on center maximum. Acoustical insulation is placed within the stud cavity.

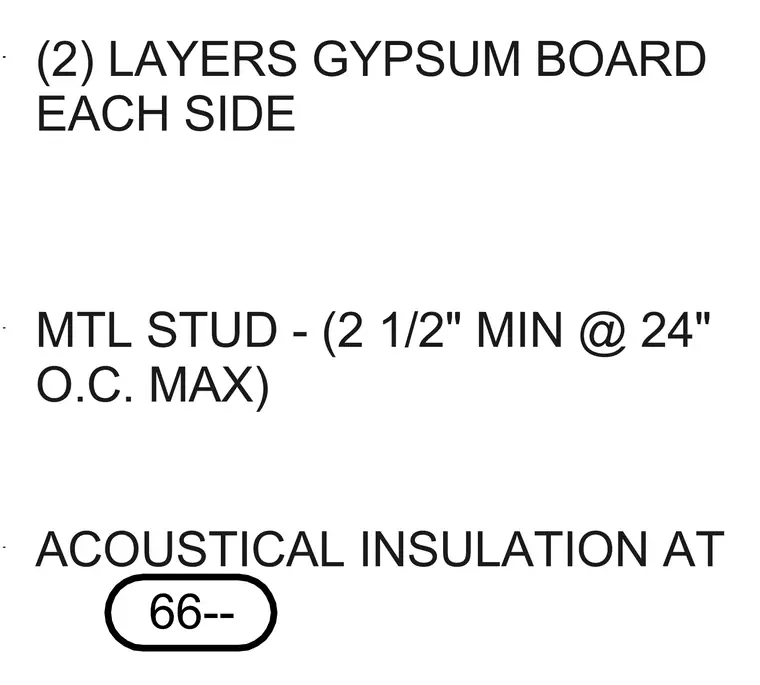

ACOUSTICAL INSULATION AT (2) LAYERS GYPSUM BOARD EACH SIDE MTL STUD - (2 1/2" MIN @ 24" O.C. MAX) 66--
