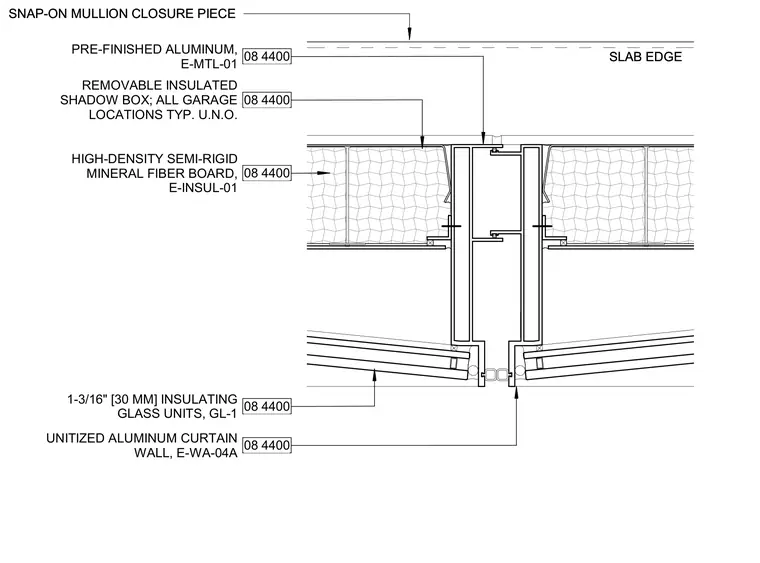

A unitized aluminum curtain wall mullion assembly at a garage slab edge incorporates a pre-finished aluminum snap-on mullion closure piece, a removable insulated shadow box typical at garage locations, and high-density semi-rigid mineral fiber board insulation. The vision areas utilize 1-3/16 inch insulating glass units designated as GL-1.
08 4400 UNITIZED ALUMINUM CURTAIN WALL, E-WA-04A 08 4400 REMOVABLE INSULATED SHADOW BOX; ALL GARAGE LOCATIONS TYP. U.N.O. 08 4400 PRE-FINISHED ALUMINUM, E-MTL-01 SNAP-ON MULLION CLOSURE PIECE SLAB EDGE 08 4400 1-3/16" [30 MM] INSULATING GLASS UNITS, GL-1 08 4400 HIGH-DENSITY SEMI-RIGID MINERAL FIBER BOARD, E-INSUL-01 SNAP-ON MULLION CLOSURE PIECE SLAB EDGE
