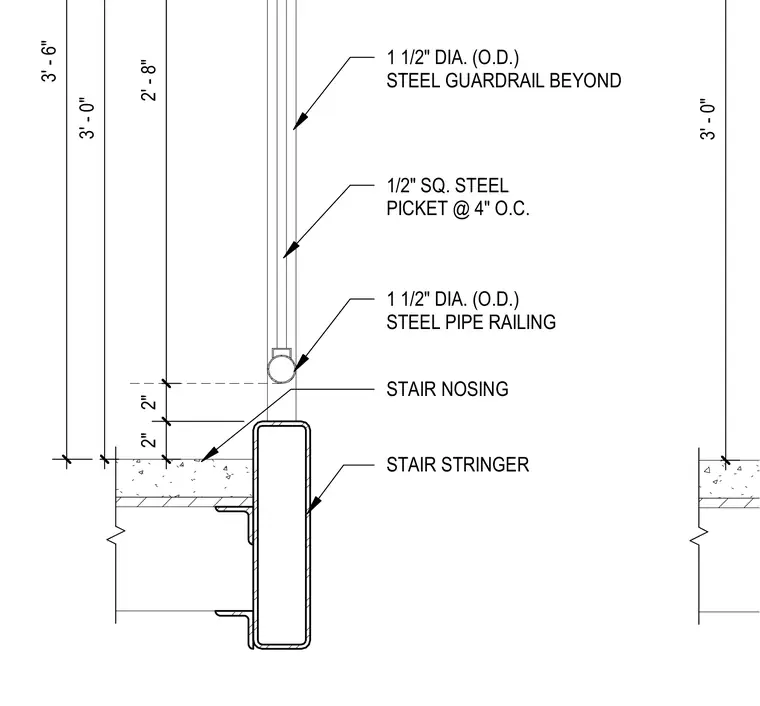

A one-and-a-half-inch outside diameter steel pipe railing sits above a stair stringer with square steel pickets spaced at four inches on center. A one-and-a-half-inch outside diameter steel guardrail appears beyond the primary plane. Vertical dimensions locate the railing components relative to the stair nosing.
1 1/2" DIA. (O.D.) STEEL PIPE RAILING 1/2" SQ. STEEL PICKET @ 4" O.C. 1 1/2" DIA. (O.D.) STEEL GUARDRAIL BEYOND 2' - 8" 2" 2" 3' - 6" 3' - 0" STAIR NOSING STAIR STRINGER 3' - 0"
