Handrail Wall Mounting and Clearance Detail

Elements

Columns Walls Railings / Guards Floors / Slabs

About this detail

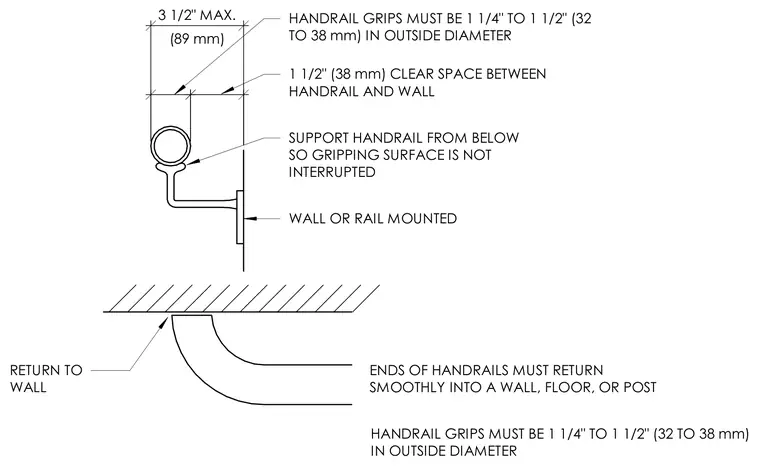

The handrail features a gripping surface between one and one-quarter inches and one and one-half inches in outside diameter, supported from below so the grip remains uninterrupted. A clear space of one and one-half inches is maintained between the handrail and the adjacent wall. The support bracket is wall or rail mounted, positioned to keep the total projection to three and one-half inches maximum. Handrail ends return smoothly into a wall, floor, or post.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
