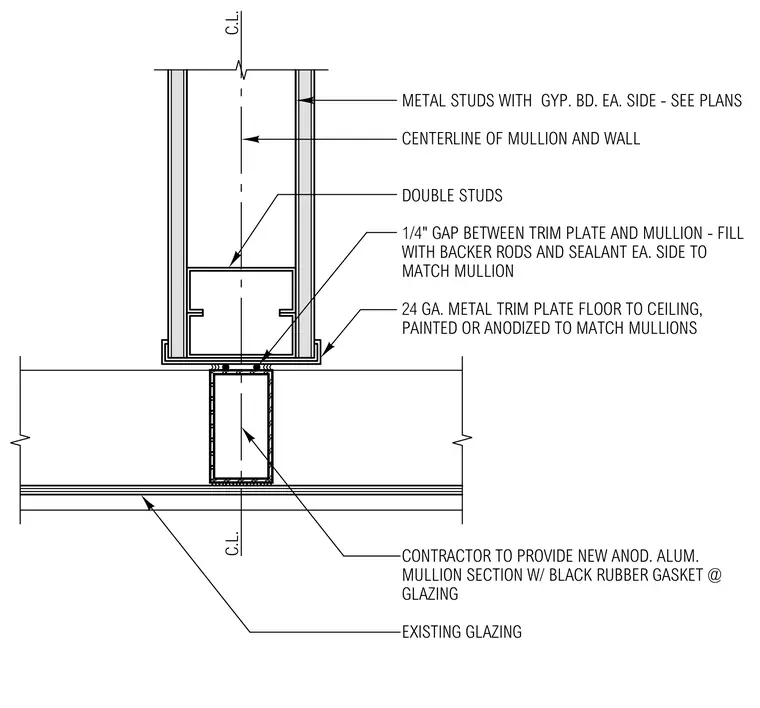

A new anodized aluminum mullion section with a black rubber gasket interfaces with existing glazing along a shared centerline. A partition wall constructed of metal studs with gypsum board on each side terminates at the mullion using double studs. A twenty-four gauge metal trim plate spans floor-to-ceiling, finished to match the mullions and finished with a quarter-inch gap filled with backer rods and sealant on each side.
C.L. C.L. METAL STUDS WITH GYP. BD. EA. SIDE - SEE PLANS CENTERLINE OF MULLION AND WALL DOUBLE STUDS 1/4" GAP BETWEEN TRIM PLATE AND MULLION - FILL WITH BACKER RODS AND SEALANT EA. SIDE TO MATCH MULLION 24 GA. METAL TRIM PLATE FLOOR TO CEILING, PAINTED OR ANODIZED TO MATCH MULLIONS CONTRACTOR TO PROVIDE NEW ANOD. ALUM. MULLION SECTION W/ BLACK RUBBER GASKET @ GLAZING EXISTING GLAZING
