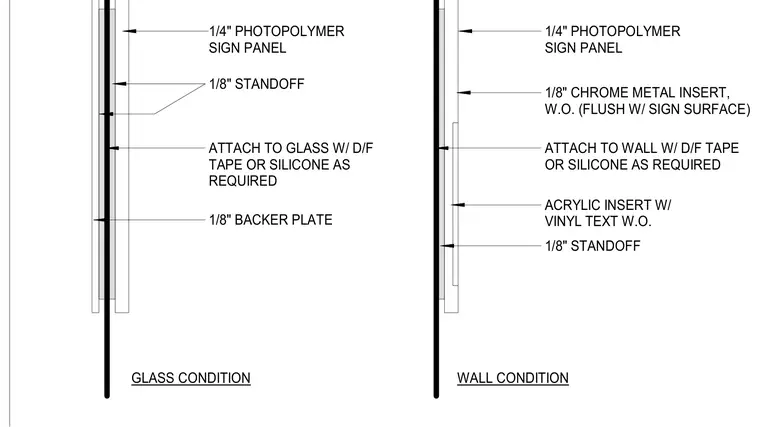

A one-quarter-inch photopolymer sign panel mounts to glass using an eighth-inch standoff and an eighth-inch backer plate, secured with double-faced tape or silicone as required. A separate wall condition mounts the sign panel with an eighth-inch standoff and acrylic insert featuring vinyl text, incorporating an eighth-inch chrome metal insert flush with the sign surface and attached to the wall using double-faced tape or silicone.
1/4" PHOTOPOLYMER SIGN PANEL 1/8" STANDOFF ATTACH TO GLASS W/ D/F TAPE OR SILICONE AS REQUIRED 1/8" BACKER PLATE 1/4" PHOTOPOLYMER SIGN PANEL 1/8" STANDOFF ATTACH TO WALL W/ D/F TAPE OR SILICONE AS REQUIRED GLASS CONDITION WALL CONDITION 1/8" CHROME METAL INSERT, W.O. (FLUSH W/ SIGN SURFACE) ACRYLIC INSERT W/ VINYL TEXT W.O.
