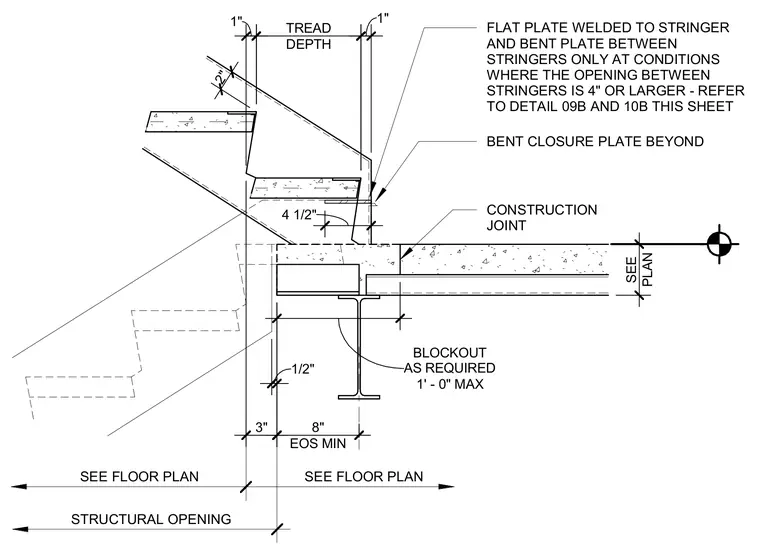

A concrete-filled metal deck floor slab supports a steel stair stringer assembly with a structural blockout as required up to one foot maximum. A flat plate is welded to the stringer alongside a bent plate between stringers, applied where the opening between stringers measures four inches or larger. A bent closure plate is positioned beyond, and a construction joint is detailed in the adjacent concrete slab. Dimensions indicate a minimum edge of slab distance of eight inches, with overall structural openings sized per the floor plan.
BENT CLOSURE PLATE BEYOND SEE FLOOR PLAN SEE FLOOR PLAN STRUCTURAL OPENING DEPTH TREAD 1" 2" 4 1/2" FLAT PLATE WELDED TO STRINGER AND BENT PLATE BETWEEN STRINGERS ONLY AT CONDITIONS WHERE THE OPENING BETWEEN STRINGERS IS 4" OR LARGER - REFER TO DETAIL 09B AND 10B THIS SHEET 3" PLAN SEE EOS MIN 8" 1' - 0" MAX BLOCKOUT AS REQUIRED CONSTRUCTION JOINT 1/2" 1"
