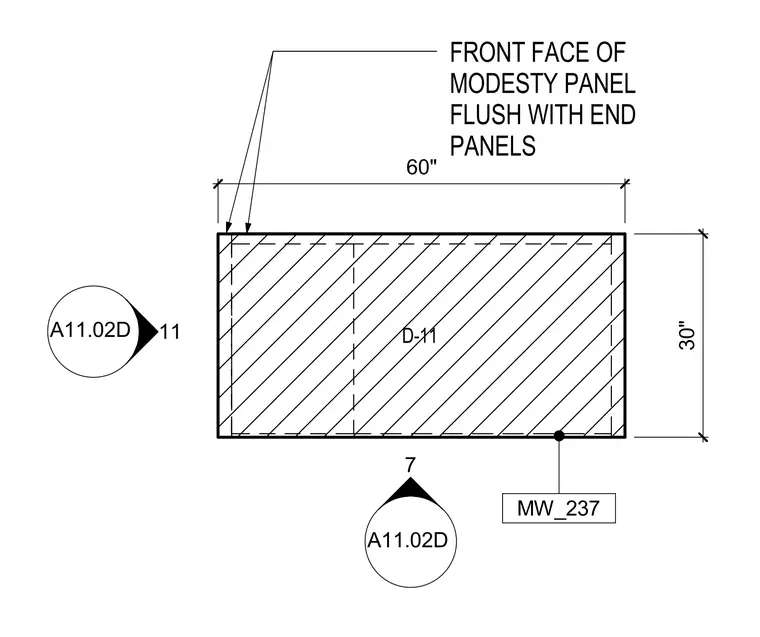

The plan details a modesty panel measuring sixty inches wide by thirty inches high. The front face of the modesty panel aligns flush with the adjacent end panels.
D-11 A11.02D 7 A11.02D 11 30" 60" MW_237 FRONT FACE OF MODESTY PANEL FLUSH WITH END PANELS
