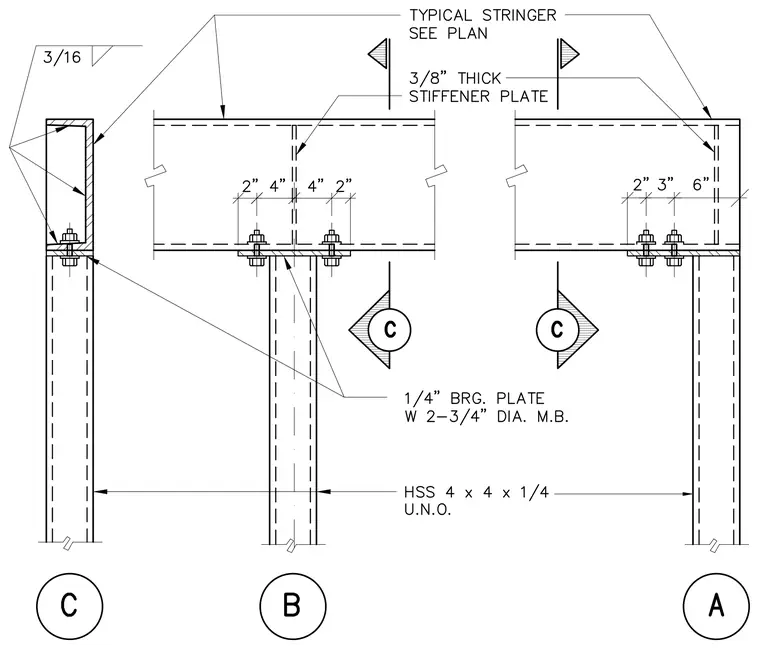

A typical stair stringer frames into hollow structural section columns sized four inches by four inches by one-quarter inch thick, unless noted otherwise. A one-quarter-inch-thick bearing plate sits between the stringer and columns, secured with two three-quarter-inch-diameter machine bolts. Three-eighths-inch-thick stiffener plates are welded inside the stringer assembly with three-sixteenths-inch fillet welds. Bolt spacing is dimensioned at two inches, four inches, three inches, and six inches depending on the specific column grid location.
