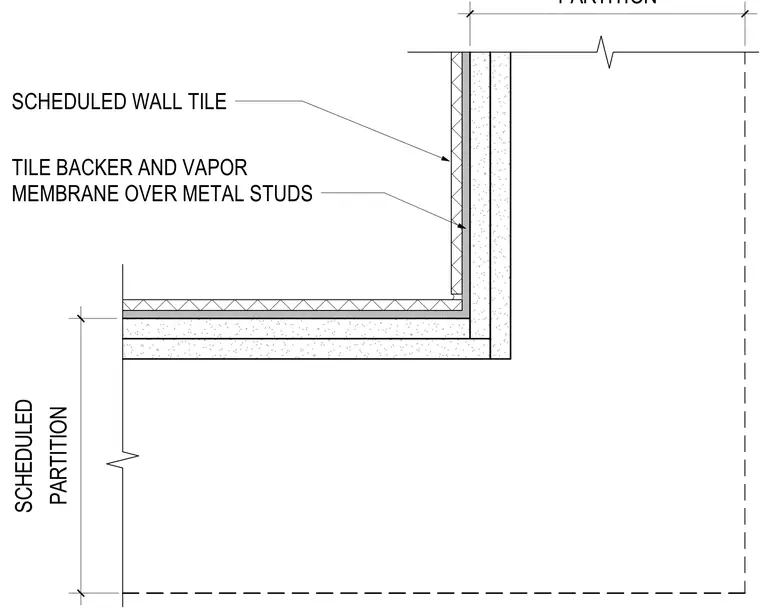

A scheduled interior partition corner assembly consists of scheduled wall tile installed over a tile backer board and vapor membrane. The backing layers are supported by cold-formed metal studs arranged at the partition intersection. The assembly includes gypsum board or similar finishes on the intersecting partition walls.
PARTITION PARTITION SCHEDULED SCHEDULED WALL TILE TILE BACKER AND VAPOR MEMBRANE OVER METAL STUDS
