A-CRV89 — False Joint 1 Detail

Architectural · A-CRV89

False Joint 1 Detail

Scale: SCALE: 6" = 1'-0"
Units: imperial
Sheet: A-500
Discipline: Architectural

Materials

Elements

Expansion / Control Joints Facades / Cladding

Text on the drawing

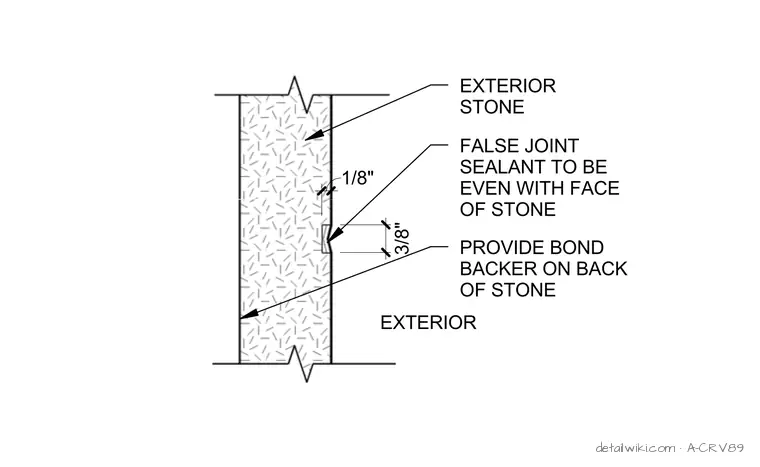

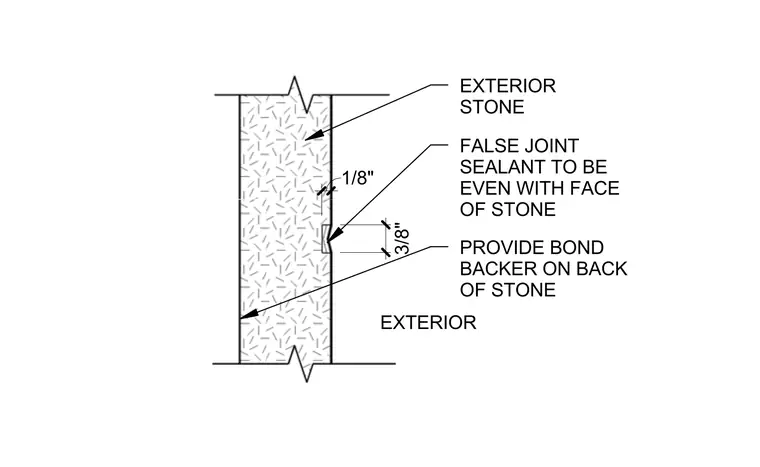

FALSE JOINT SEALANT TO BE EVEN WITH FACE OF STONE 1/8" 3/8" EXTERIOR EXTERIOR STONE PROVIDE BOND BACKER ON BACK OF STONE
