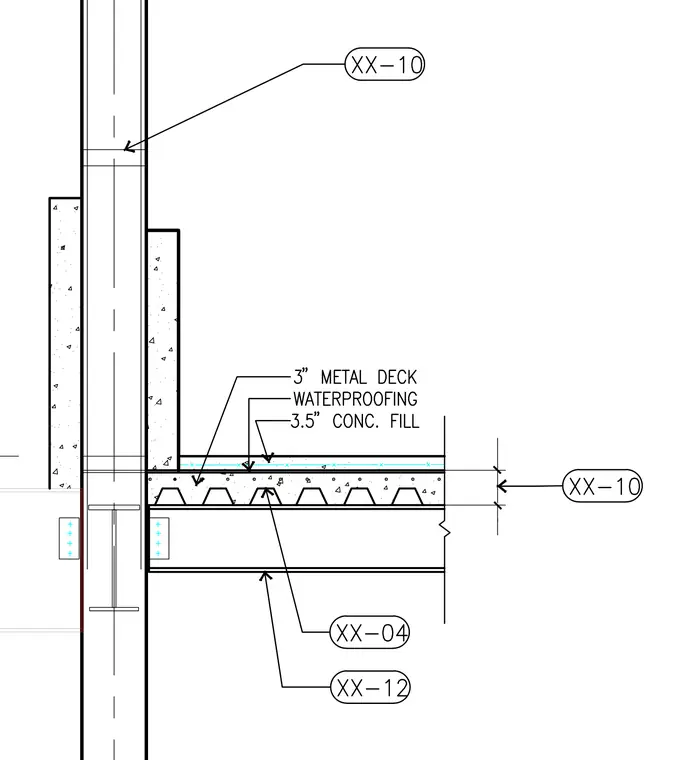

A 3.5-inch concrete fill is placed over a 3-inch metal deck with an underlying waterproofing layer, supported by a structural steel floor beam framing into a column. The perimeter condition details the transition between the floor slab, the steel framing, and the exterior wall assembly above and below the floor line.
