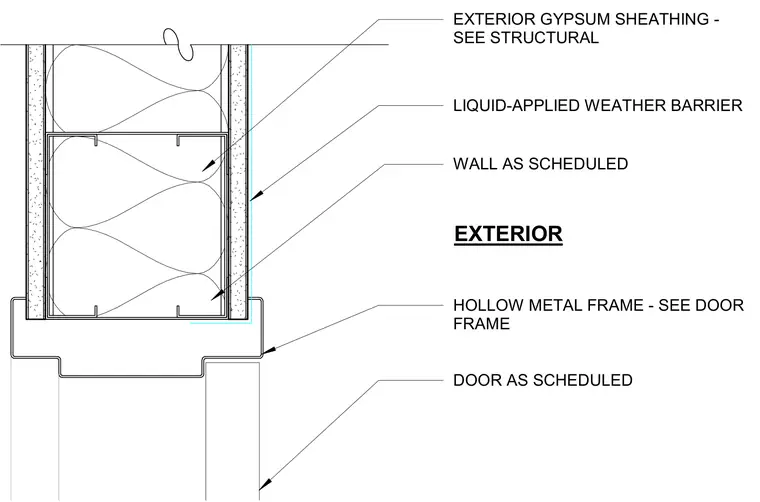

The head detail shows an exterior hollow metal door frame set below a framed wall assembly as scheduled. A continuous liquid-applied weather barrier is applied over the exterior gypsum sheathing. The wall framing is enclosed with gypsum board finishes on both sides.
EXTERIOR WALL AS SCHEDULED HOLLOW METAL FRAME - SEE DOOR FRAME DOOR AS SCHEDULED LIQUID-APPLIED WEATHER BARRIER EXTERIOR GYPSUM SHEATHING - SEE STRUCTURAL
