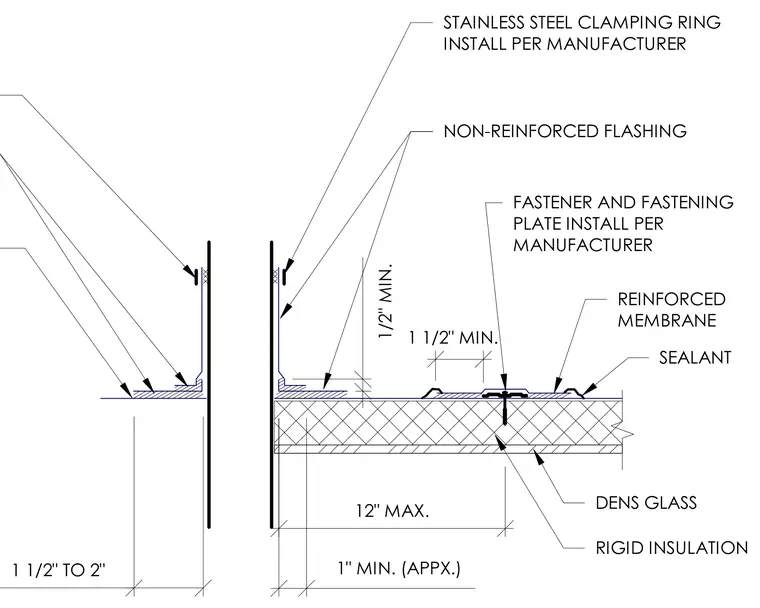

A stainless steel clamping ring is installed per manufacturer instructions over a non-reinforced flashing and reinforced membrane. Fasteners and fastening plates secure the membrane to the underlying rigid insulation and DensGlass substrate. Sealant is applied at membrane terminations. Dimensional clearances include a one-half inch minimum and twelve-inch maximum spacing.
1 1/2" TO 2" 12" MAX. 1" MIN. (APPX.) 1/2" MIN. 1 1/2" MIN. STAINLESS STEEL CLAMPING RING INSTALL PER MANUFACTURER FASTENER AND FASTENING PLATE INSTALL PER MANUFACTURER NON-REINFORCED FLASHING REINFORCED MEMBRANE SEALANT RIGID INSULATION DENS GLASS — /22e A 7
