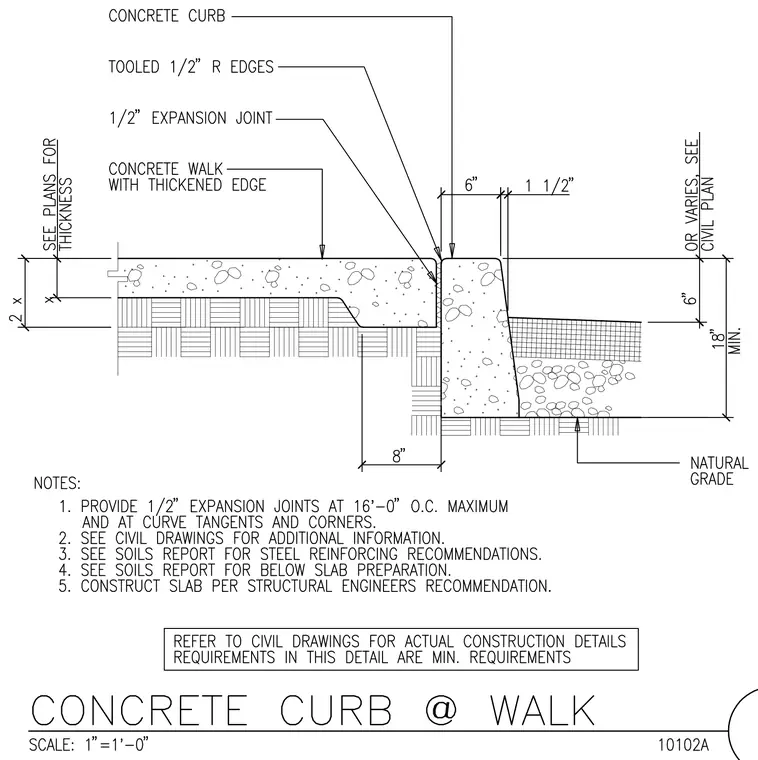

A cast-in-place concrete curb abuts a concrete walk with a thickened edge, separated by a one-half-inch expansion joint. The curb features tooled one-half-inch radius edges and extends eighteen inches minimum to natural grade. The concrete walk includes a thickened edge spanning eight inches wide, with thickness and reinforcing specified per plans and soils reports. One-half-inch expansion joints are required at sixteen-foot maximum on-center spacing, curve tangents, and corners.
