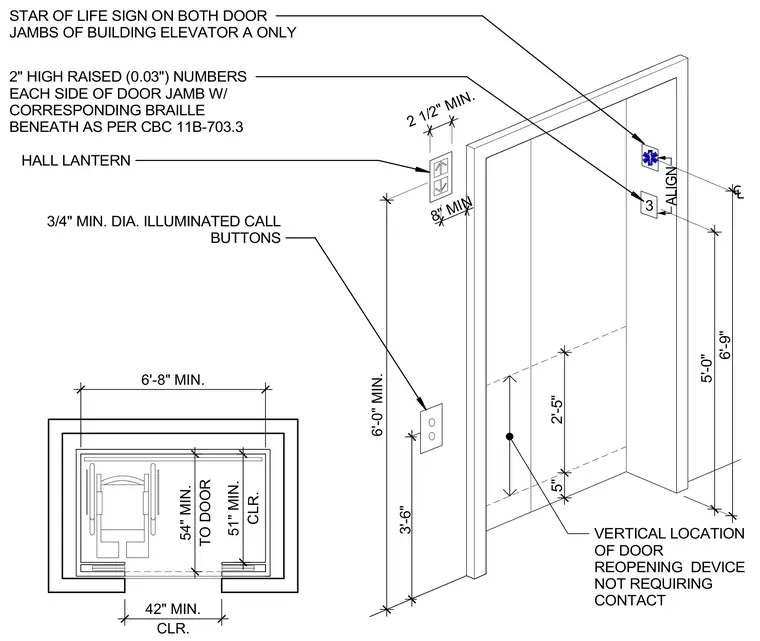

Elevator door jambs feature two-inch high raised numbers with corresponding braille placed on each side as required by California Building Code. A Star of Life sign is mounted on both door jambs of building elevator A only, aligned with the hall lantern and call buttons. The hall lantern is positioned at a minimum of six feet above the finished floor, with three-quarter-inch minimum diameter illuminated call buttons mounted below. The vertical location of the non-contact door reopening device is centered at five inches above the finished floor. The elevator car interior requires a minimum forty-two-inch clear door opening width with fifty-one-inch minimum clearance to the door and fifty-four-inch minimum depth.
2" HIGH RAISED (0.03") NUMBERS EACH SIDE OF DOOR JAMB W/ CORRESPONDING BRAILLE BENEATH AS PER CBC 11B-703.3 3 HALL LANTERN 3/4" MIN. DIA. ILLUMINATED CALL BUTTONS 6'-0" MIN. 6 3'-6" 2 1/2" MIN. 8" MIN 10 5'-0" 1 4 2'-5" 5" VERTICAL LOCATION OF DOOR REOPENING DEVICE NOT REQUIRING CONTACT STAR OF LIFE SIGN ON BOTH DOOR JAMBS OF BUILDING ELEVATOR A ONLY ALIGN 6'-9" 12 CLR. 42" MIN. 6'-8" MIN. CLR. 51" MIN. TO DOOR 54" MIN.
