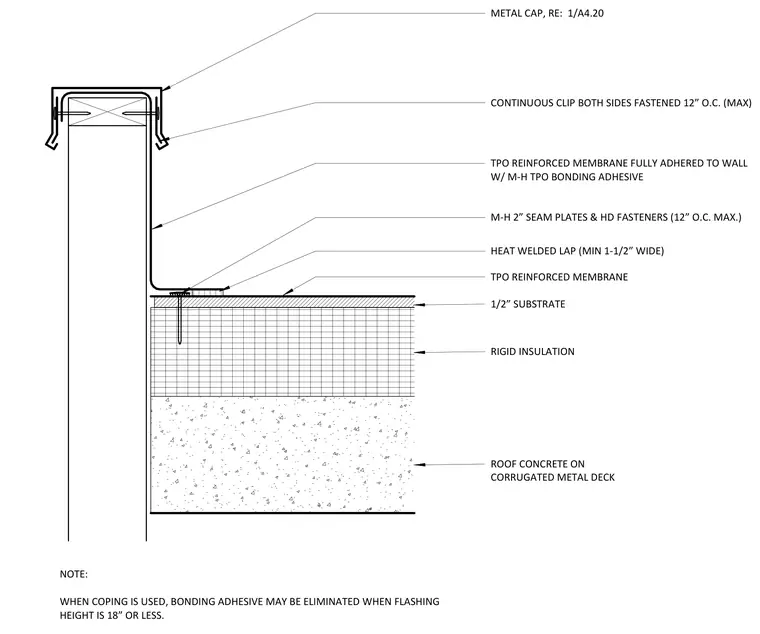

A parapet wall assembly terminates at a concrete roof deck on corrugated metal deck. The roof buildup consists of rigid insulation and a half-inch substrate, topped with a TPO reinforced membrane fully adhered using bonding adhesive and secured with two-inch seam plates and heavy-duty fasteners spaced at twelve inches on center maximum. A heat-welded lap measuring at least one and one-half inches wide joins the membrane sections. The top of the parapet wall receives a metal cap secured by continuous clips on both sides fastened at twelve inches on center maximum. When a coping is used, the bonding adhesive may be eliminated if the flashing height is eighteen inches or less.
ROOF CONCRETE ON CORRUGATED METAL DECK RIGID INSULATION TPO REINFORCED MEMBRANE 1/2” SUBSTRATE HEAT WELDED LAP (MIN 1-1/2” WIDE) TPO REINFORCED MEMBRANE FULLY ADHERED TO WALL W/ M-H TPO BONDING ADHESIVE M-H 2” SEAM PLATES & HD FASTENERS (12” O.C. MAX.) METAL CAP, RE: 1/A4.20 CONTINUOUS CLIP BOTH SIDES FASTENED 12” O.C. (MAX) NOTE: WHEN COPING IS USED, BONDING ADHESIVE MAY BE ELIMINATED WHEN FLASHING HEIGHT IS 18” OR LESS.
