Architectural · A-CQWKH

Roof Hatch Safety Rail System

Materials

Elements

Railings / Guards Roofs Ceilings Site / Paving Roof / Floor Openings

About this detail

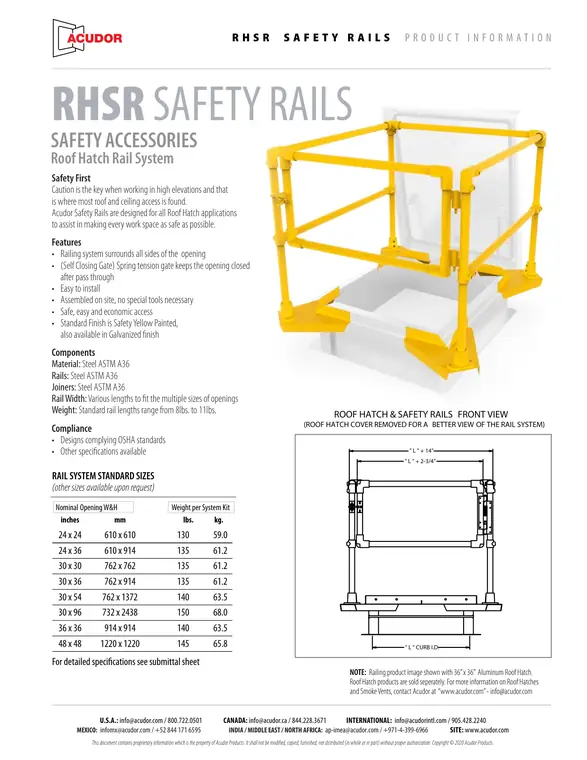

The Acudor RHSR safety rail system is designed for roof hatch applications in compliance with OSHA standards. The assembly features a structural steel ASTM A36 railing system that surrounds all sides of the opening, complete with a self-closing spring tension gate. Standard rail finish is safety yellow painted with an optional galvanized finish available. Standard nominal opening sizes range from twenty-four by twenty-four inches up to forty-eight by forty-eight inches with system kit weights varying from one hundred thirty pounds to one hundred forty-five pounds. A front view diagram with dimensional notations corresponds to the roof hatch curb inside dimension and overall rail width.

SAFETY ACCESSORIES Roof Hatch Rail System R H S R S A F E T Y R A I L S P R O D U C T I N F O R M A T I O N RHSR SAFETY RAILS Safety First Caution is the key when working in high elevations and that is where most roof and ceiling access is found. Acudor Safety Rails are designed for all Roof Hatch applications to assist in making every work space as safe as possible. Features • Railing system surrounds all sides of the opening • (Self Closing Gate) Spring tension gate keeps the opening closed after pass through • Easy to install • Assembled on site, no special tools necessary • Safe, easy and economic access • Standard Finish is Safety Yellow Painted, also available in Galvanized ﬁnish Components Material: Steel ASTM A36 Rails: Steel ASTM A36 Joiners: Steel ASTM A36 Rail Width: Various lengths to ﬁt the multiple sizes of openings Weight: Standard rail lengths range from 8lbs. to 11lbs. Compliance • Designs complying OSHA standards • Other speciﬁcations available NOTE: Railing product image shown with 36” x 36” Aluminum Roof Hatch. Roof Hatch products are sold seperately. For more information on Roof Hatches and Smoke Vents, contact Acudor at “www.acudor.com” - info@acudor.com RAIL SYSTEM STANDARD SIZES (other sizes available upon request) Nominal Opening W&H Weight per System Kit inches mm lbs. kg. 24 x 24 610 x 610 130 59.0 24 x 36 610 x 914 135 61.2 30 x 30 762 x 762 135 61.2 30 x 36 762 x 914 135 61.2 30 x 54 762 x 1372 140 63.5 30 x 96 732 x 2438 150 68.0 36 x 36 914 x 914 140 63.5 48 x 48 1220 x 1220 145 65.8 For detailed speciﬁcations see submittal sheet " L " CURB I.D. " L " + 14" " L " + 2-3/4" ROOF HATCH & SAFETY RAILS FRONT VIEW (ROOF HATCH COVER REMOVED FOR A BETTER VIEW OF THE RAIL SYSTEM) U.S.A.: info@acudor.com / 800.722.0501 CANADA: info@acudor.ca / 844.228.3671 INTERNATIONAL: info@acudorintl.com / 905.428.2240 MEXICO: infomx@acudor.com / +52 844 171 6595 INDIA / MIDDLE EAST / NORTH AFRICA: ap-imea@acudor.com / +971-4-399-6966 SITE: www.acudor.com This document contains proprietary information which is the property of Acudor Products. It shall not be modiﬁed, copied, furnished, nor distributed (in whole or in part) without proper authorization. Copyright © 2020 Acudor Products.
