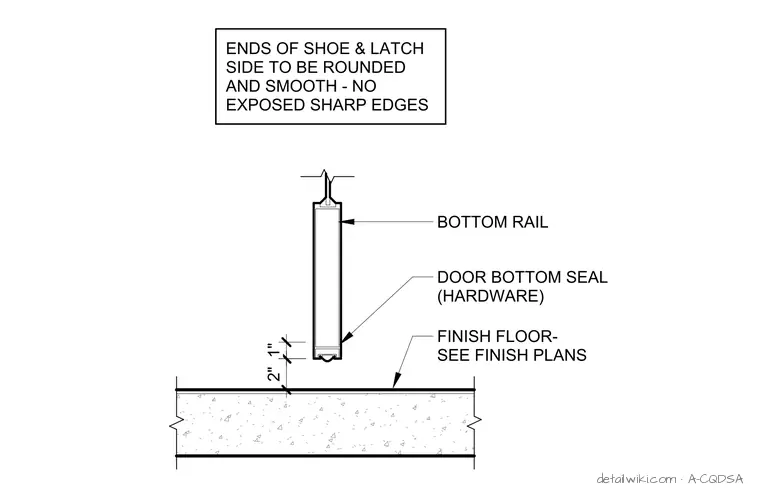

An aluminum door bottom rail incorporates a door bottom seal. The door bottom maintains a one-inch clearance above the finished floor as specified per the finish plans. Shoe and latch side ends must be rounded and smooth to eliminate exposed sharp edges.
