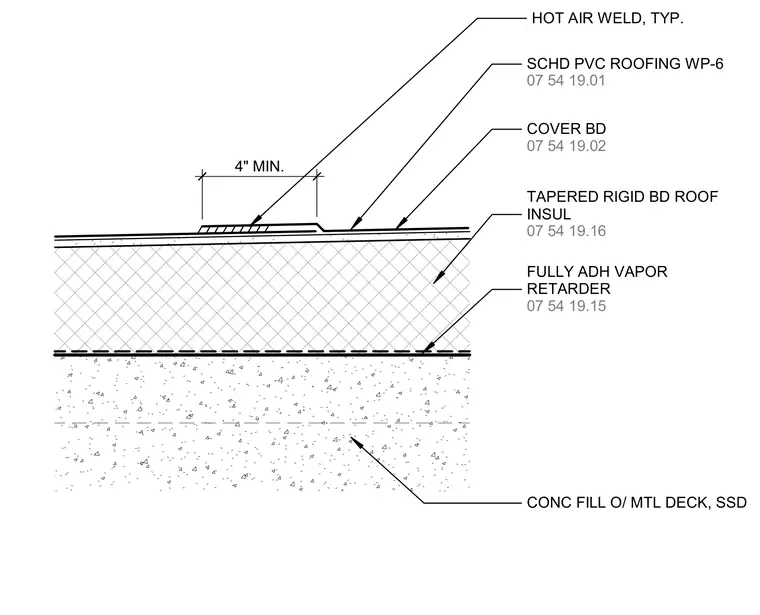

A PVC roof assembly is installed over a concrete fill on metal deck substrate. A fully adhered vapor retarder is applied directly to the concrete fill, followed by a layer of tapered rigid board roof insulation. A cover board is placed over the insulation to receive the scheduled PVC roofing membrane, which features a typical four-inch minimum overlap sealed with a hot air weld.
HOT AIR WELD, TYP. 07 54 19.15 FULLY ADH VAPOR RETARDER 07 54 19.02 COVER BD 07 54 19.01 SCHD PVC ROOFING WP-6 07 54 19.16 TAPERED RIGID BD ROOF INSUL CONC FILL O/ MTL DECK, SSD 4" MIN.
