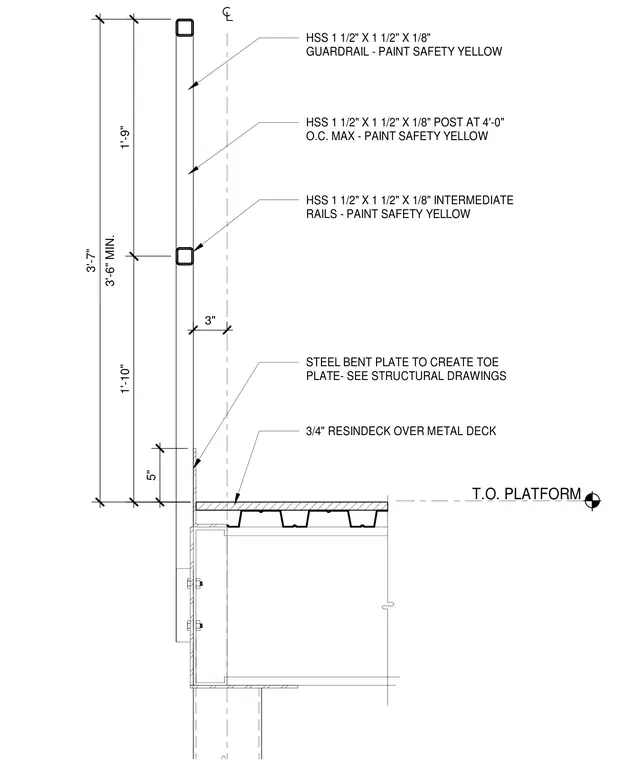

A safety guardrail assembly at a sorter platform edge is constructed from hollow structural section members. The guardrail and intermediate rails consist of 1 1/2 inch by 1 1/2 inch by 1/8 inch hollow structural sections finished with safety yellow paint. The posts are spaced at a maximum of 4 feet on center and connect to the platform framing. A steel bent plate creates a toe plate at the platform edge, sized per structural drawings. The platform floor comprises a 3/4 inch resindeck installed over a metal deck.
T.O. PLATFORM 3" 5" 1'-9" 1'-10" 3'-6" MIN. 3'-7" HSS 1 1/2" X 1 1/2" X 1/8" GUARDRAIL - PAINT SAFETY YELLOW HSS 1 1/2" X 1 1/2" X 1/8" POST AT 4'-0" O.C. MAX - PAINT SAFETY YELLOW HSS 1 1/2" X 1 1/2" X 1/8" INTERMEDIATE RAILS - PAINT SAFETY YELLOW STEEL BENT PLATE TO CREATE TOE PLATE- SEE STRUCTURAL DRAWINGS 3/4" RESINDECK OVER METAL DECK
