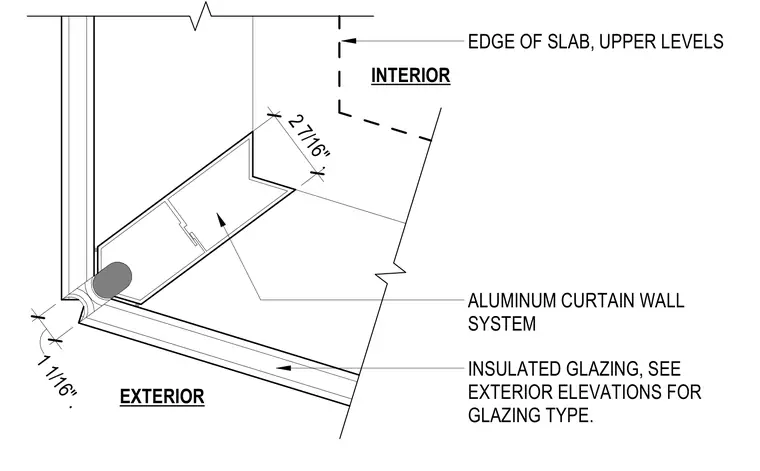

An aluminum curtain wall system is installed at the building corner, featuring vertical mullions aligned with the upper level edge of slab. Insulated glazing units are set into the framing system, with glazing types specified in exterior elevations. Clearances of 1 1/16 inch and 2 7/16 inch are maintained at the corner junction.
1 1/16" . 2 7/16" . EDGE OF SLAB, UPPER LEVELS INSULATED GLAZING, SEE EXTERIOR ELEVATIONS FOR GLAZING TYPE. ALUMINUM CURTAIN WALL SYSTEM EXTERIOR INTERIOR
