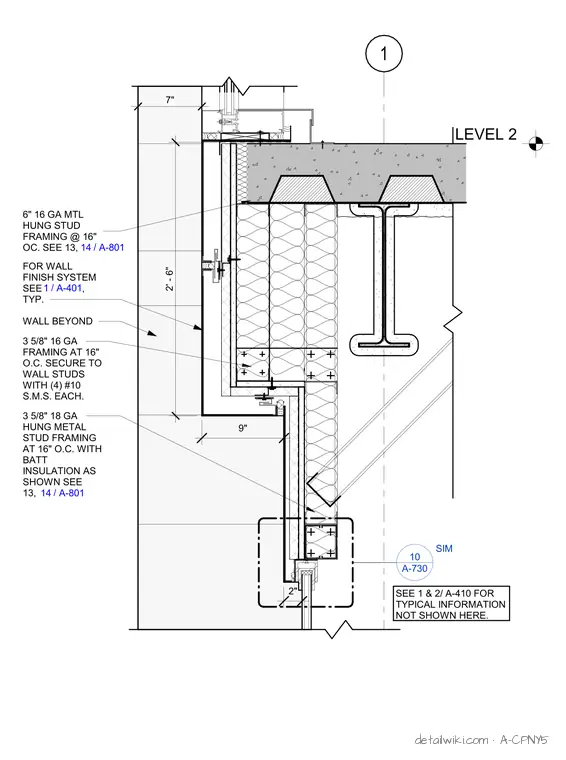

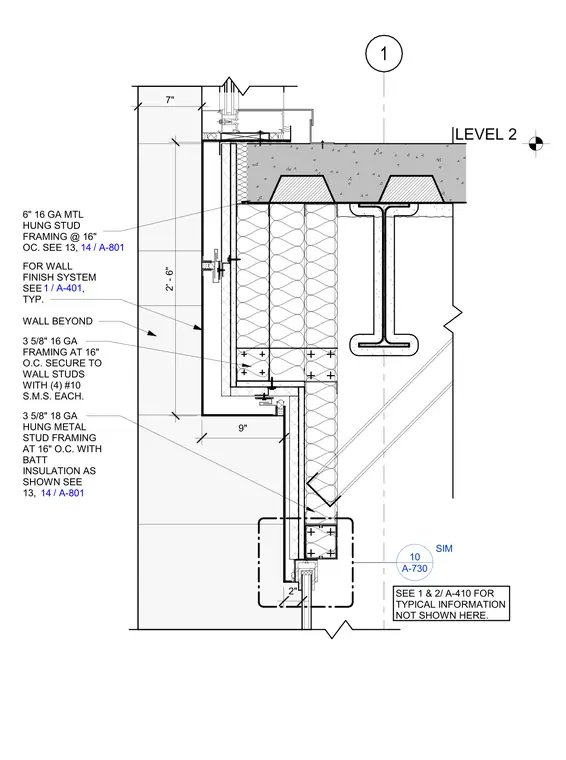

Text on the drawing
1 SEE 1 & 2/ A-410 FOR TYPICAL INFORMATION NOT SHOWN HERE. 9" FOR WALL FINISH SYSTEM SEE , TYP. / 1 A-401 WALL BEYOND 3 5/8" 18 GA HUNG METAL STUD FRAMING AT 16" O.C. WITH BATT INSULATION AS SHOWN SEE 13, 6" 16 GA MTL HUNG STUD FRAMING @ 16" OC. SEE 13, A-730 10 SIM LEVEL 2 2" / 14 A-801 / 14 A-801 3 5/8" 16 GA FRAMING AT 16" O.C. SECURE TO WALL STUDS WITH (4) #10 S.M.S. EACH. 7" 2' - 6"
