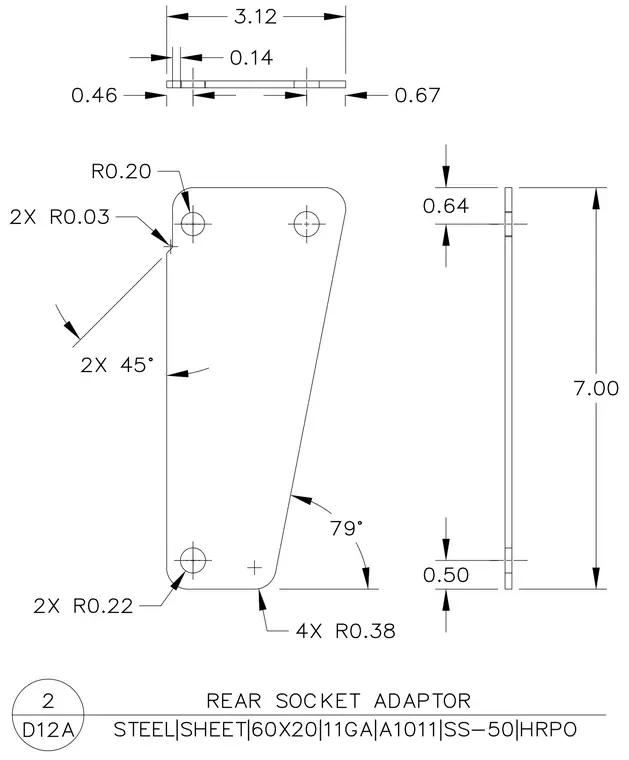

A rear socket adaptor is fabricated from 11-gauge hot-rolled pickled and oiled structural steel sheet conforming to ASTM A1011 SS Grade 50. The part measures 7.00 inches in total length with an overall width of 3.12 inches. It features two 45-degree chamfered edge details, four rounded corners with 0.38-inch radii, and two corner radii of 0.20 and 0.03 inches. Four mounting holes are provided at specified edge distances including 0.64 and 0.50 inches from the ends.
2X R0.22 R0.20 2X R0.03 4X R0.38 7.00 0.50 0.64 79° 2X 45° 3.12 0.46 0.67 0.14 REAR SOCKET ADAPTOR 2 D12A STEEL|SHEET|60X20|11GA|A1011|SS-50|HRPO [ I I I ] I
