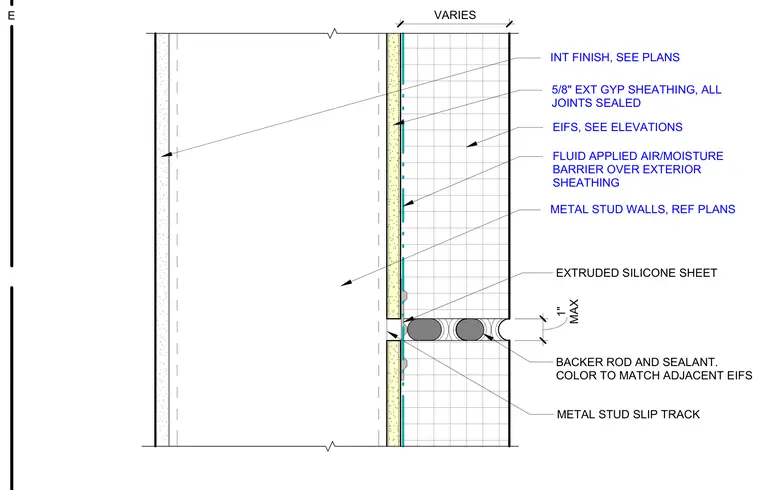

An exterior insulation and finish system control joint mounts over metal stud walls with a 5/8-inch exterior gypsum sheathing having all joints sealed. A fluid-applied air and moisture barrier applies directly over the exterior sheathing. The joint incorporates an extruded silicone sheet positioned behind a backer rod and sealant, with color matched to the adjacent EIFS. Metal stud slip tracks accommodate movement at the control joint assembly. Interior finishes are sized per plans.
METAL STUD SLIP TRACK EXTRUDED SILICONE SHEET MAX 1" BACKER ROD AND SEALANT. COLOR TO MATCH ADJACENT EIFS VARIES METAL STUD WALLS, REF PLANS INT FINISH, SEE PLANS 5/8" EXT GYP SHEATHING, ALL JOINTS SEALED EIFS, SEE ELEVATIONS FLUID APPLIED AIR/MOISTURE BARRIER OVER EXTERIOR SHEATHING E
