Architectural · A-CP37N

Ceiling Detail

Units: metric
Sheet: A-580
Discipline: Architectural

Materials

Gypsum / Drywall Steel

Elements

Ceilings Floors / Slabs Millwork / Casework Reinforcing Walls

Text on the drawing

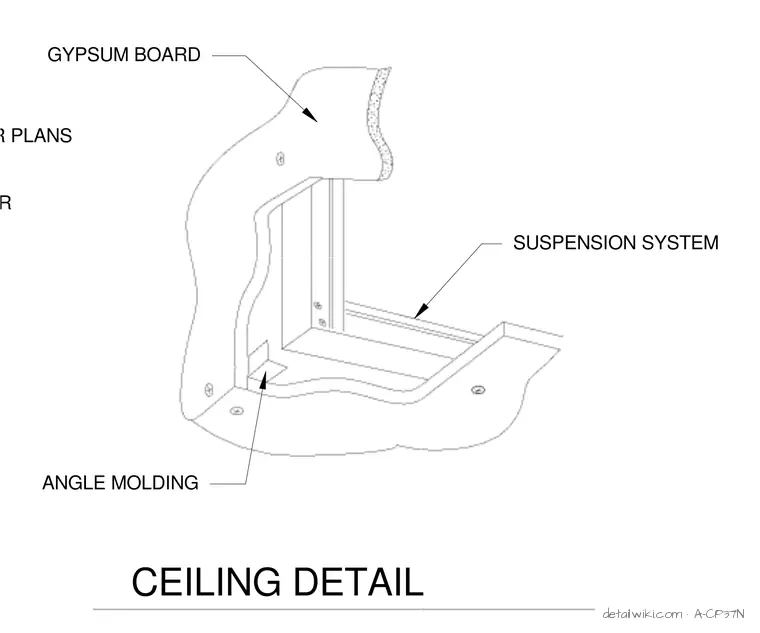

CEILING DETAIL CROSS TIE AS PER WALL. SEE FLOOR PLANS ANGLE MOLDING GYPSUM BOARD SUSPENSION SYSTEM
