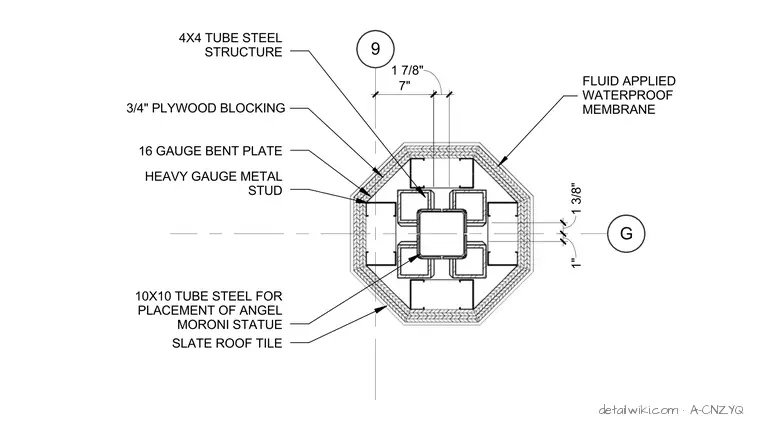

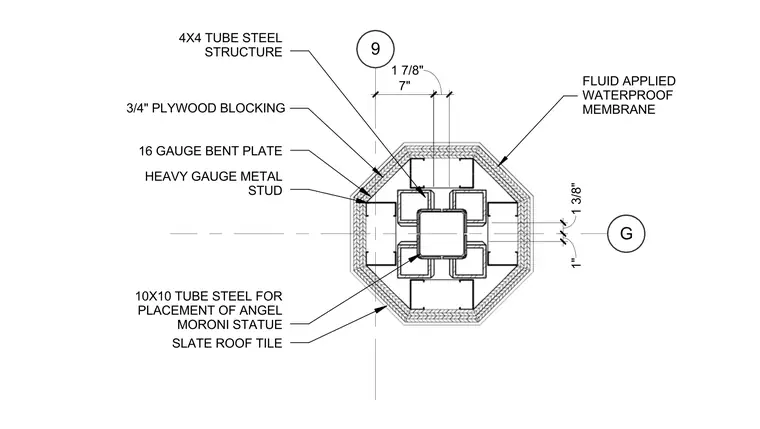

A-CNZYQ — Tower Detail One (Upward View)

Architectural · A-CNZYQ

Tower Detail One (Upward View)

Scale: SCALE: 1" = 1'-0"
Units: imperial
Sheet: A5
Discipline: Architectural

Materials

Cold-formed Steel Membrane / Roofing Metal (misc.)Steel Stone Timber / Wood

Elements

Connections / Plates Roofs Waterproofing / Flashing

Connections

Text on the drawing

9 G 16 GAUGE BENT PLATE HEAVY GAUGE METAL STUD 4X4 TUBE STEEL STRUCTURE 10X10 TUBE STEEL FOR PLACEMENT OF ANGEL MORONI STATUE 7" 1 7/8" 1" 1 3/8" SLATE ROOF TILE 3/4" PLYWOOD BLOCKING FLUID APPLIED WATERPROOF MEMBRANE

Members view this detail in full resolution, download the CAD files (SVG, PDF), and open any detail in the built-in CAD editor to edit and export DXF or DWG.
